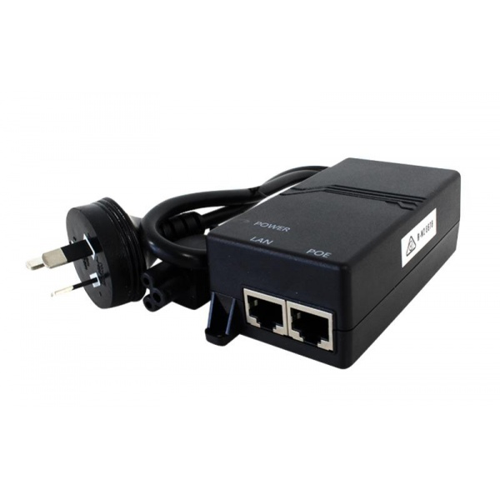

GRANDSTREAM 5Gigabit PoE Injector G0720-480-050 48V APs GWN PoE Standard

G0720 PoE InjectorTechnical Data

PoE Standard

No Detection passive injector

Input Power:

100-240VAC;50-60Hz 0.75A

Power over Ethernet Output

Output: 48V0.5A

Power Consumption:

24W max

RJ-45 pin assignment and polarity

Power: Pins 4/5(+), 7/8(-)

Data Rate:

10/100/1000Mbps

MTBF:

500K Hours

Safety Approval:

UL/cUL,GS,CB,FCC,CE

Efficiency

VI

Standards:

IEEE 802.3 10Base-T             IEEE 802.3U 100Base-TX

IEEE 802.3ab 1000Base-T     IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus

LED Indicator

AC power; PoE Active

Interface:

1 "Data ' In RJ-45 Ethernet Port

1 "Data+Power" Output RJ-45 Ethernet Port 1 AC Input Power socket

Environmental

Operating Temp:

0 to +40

Storage Temp:

-40to +70

Humidity:

0 to +95RH

Mechanical

Weight:

133g

Dimension(L*W*H):

97*53.5*33.5mm              114*53.5*67.5mm(ear)
