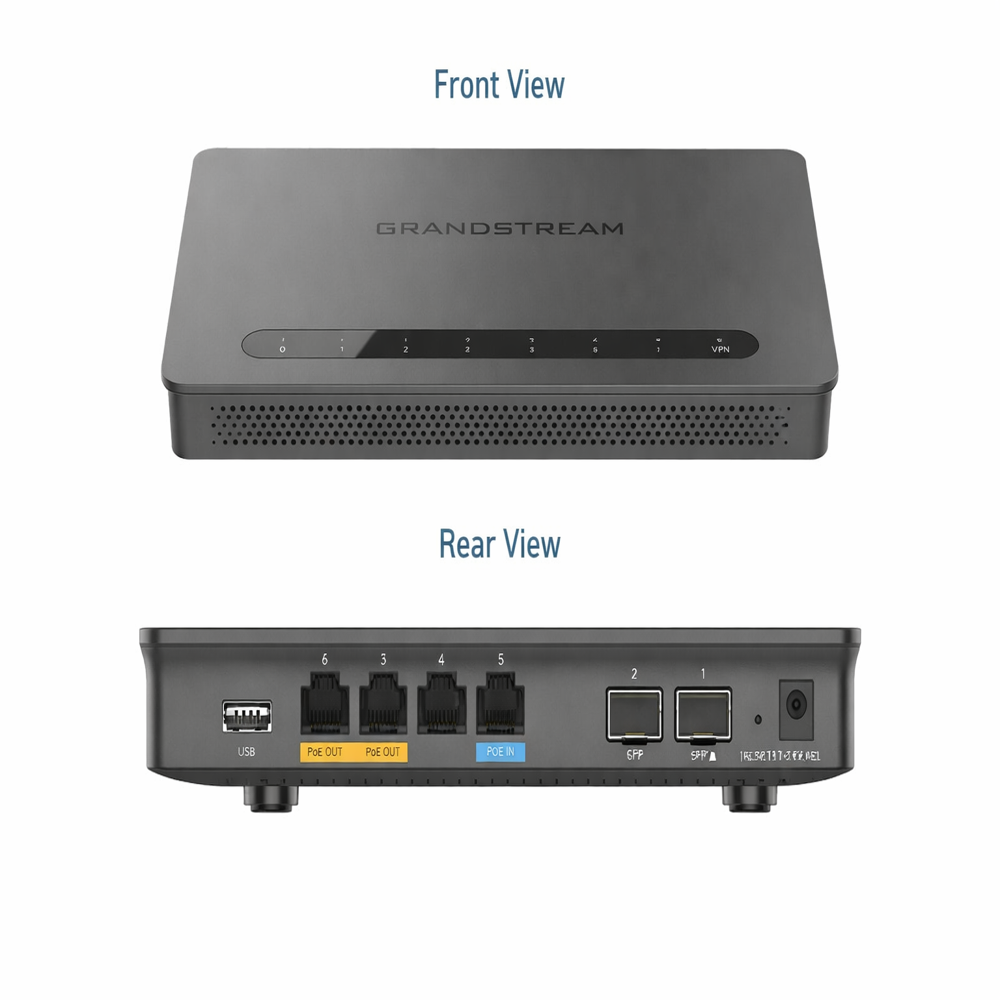

Grandstream GWN7002 | 6-Port Wired Gigabit VPN Router | Dual PoE Output Ports

Send Inquiry

Request To Call Back

Grandstream GWN7002 | 6-Port Wired Gigabit VPN Router | Dual PoE Output Ports

Name: Grandstream GWN7002 | 6-Port Wired Gigabit VPN Router | Dual PoE Output Ports
Brand: AIRPATH WIRELESSNET SOLUTIONS
Price: 6300.00 INR
Availability: InStock

Price 6300.00 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Grandstream GWN7002 | 6-Port Wired Gigabit VPN Router | Dual PoE Output Ports Specification

Operating Temperature
0C ~ 40C

IP Routing
Supports static routing, policy routing, NAT/NAPT, IPv4/IPv6 dual-stack

Power Supply
DC 12V/1.5A

Weight
410g (approximate)

Frequency
Not applicable (wired device)

Dimension (L*W*H)
200 x 120 x 30 mm

Interface Type
RJ45, SFP, USB

Antenna
No external antenna (wired device)

Device Type
VPN Security Router

Features
Dual PoE Output, VPN Support (PPTP, L2TP, OpenVPN, IPSec), Centralized Network Management, VLAN, Firewall, QoS

Power Consumption
Maximum 18W

Usage & Applications
Business networks, small to medium enterprises, secure networking

Remote Control
Yes

Network Device
Router

Number Of Ports/Pins
6 Ports

Connectivity Type
Wired, Gigabit Ethernet & SFP

Cable Length
Up to 100 meters (Ethernet ports)

Management Interface
HTTP/HTTPS Web GUI, SSH, SNMP, CLI

Mounting Options
Desktop

Firewall Features
Stateful packet inspection, DoS protection, MAC/IP filtering

Compliance
CE, FCC, RoHS

VPN Types Supported
IPsec, PPTP, L2TP, OpenVPN, GRE, ZeroTier

Flash/Memory
256MB DDR, 128MB Flash

SFP Ports
2 x SFP for fiber uplink/expansion

USB Port
1 x USB 3.0 for external storage/network backup

MTBF
>200,000 hours (25C)

Certificates
Supports SSL certificates management

VLAN Support
802.1Q VLAN tagging

Reset Button
Factory default reset supported

QoS
Layer 2/3 QoS policies, bandwidth management

LED Indicators
Port status, Power, VPN activity

PoE Output
2 x Gigabit PoE OUT Ports (802.3af/at, Max 30W combined)

PoE Input
1 x Gigabit PoE IN Port (802.3af/at, Max 30W input)

Grandstream GWN7002 | 6-Port Wired Gigabit VPN Router | Dual PoE Output Ports Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Days

Grandstream GWN7002 | 6-Port Wired Gigabit VPN Router | Dual PoE Output Ports About

Multi-WAN Gigabit VPN Routers
The GWN7000 Series are Multi-WAN Gigabit VPN routers with built-in firewalls that allow businesses to build comprehensive wired, wireless and VPN networks for one or many locations.

1x GbE RJ45 port with IEEE 802.3af/at PoE Input and 2x GbE RJ45 ports with 48V Passive PoE output or IEEE802.3af (GWN7002/GWN7003)
Supports multiple Gigabit RJ45 ports
Supports 2x 2.5 Gigabit SFP ports (GWN7002/GWN7003)
Built-in VPN support allows easy access to corporate networks for remote employees
Multiple WAN ports with load balancing and failover to maximize connection reliability
Rich firewall features including DDNS, port forwarding, DMZ, UPnP, Anti-Dos, traffic rules, NAT and ALG
Supports application/protocol monitoring and traffic statistics with Deep Packet Inspection (DPI)
Advanced QoS to ensure real-time performance of low-latency applications
Supports application, URL,DNS, and web content filtering to block access from unsecure contents
Embedded controller can manage itself and up to 150 GWN APs; GDMS Networking offers a free cloud management platform for unlimited routers and GWN APs

Advanced Network Security and VPN Support

The GWN7002 delivers robust security for your business with stateful packet inspection, DoS protection, and advanced firewall rules including MAC/IP filtering. Its broad VPN compatibility (IPsec, PPTP, L2TP, OpenVPN, GRE, ZeroTier) enables highly secure remote access and site-to-site tunnels, keeping sensitive data protected across distributed office environments.

Power Over Ethernet and Flexible Connectivity

This router streamlines your network setup with dual PoE OUT ports for powering devices such as IP phones or cameras, and a PoE IN port for alternative powering options. Two SFP fiber ports support seamless uplink or network expansion, while the USB 3.0 port adds backup and storage possibilities, enhancing deployment flexibility.

Centralized Management and Simple Deployment

The GWN7002 offers centralized and remote management via a modern Web GUI, SSH, SNMP, or CLI, giving administrators intuitive control from anywhere. LED indicators display clear real-time status, while the compact design and multiple mounting options allow for convenient and efficient installation in any business environment.

FAQ's of Grandstream GWN7002 | 6-Port Wired Gigabit VPN Router | Dual PoE Output Ports:

Q: How do I set up the Grandstream GWN7002 router for my business network?

A: You can set up the GWN7002 using its intuitive web-based management interface, accessible via HTTP/HTTPS. Simply connect your computer to one of the router's Ethernet ports, access the default IP address in your browser, and follow the setup wizard to configure your network, firewall, VLAN, and VPN settings.

Q: What types of VPN protocols does the GWN7002 router support?

A: The Grandstream GWN7002 supports various VPN protocols, including IPsec, PPTP, L2TP, OpenVPN, GRE, and ZeroTier. This wide compatibility ensures secure remote access or site-to-site connectivity tailored to diverse enterprise requirements.

Q: When should I utilize the PoE OUT ports on the GWN7002 router?

A: Use the dual PoE OUT ports (with a combined power output up to 30W) when you need to power compatible PoE-enabled devices such as IP phones, security cameras, or wireless access points directly from the router, reducing the need for separate power supplies.

Q: Where can I mount the GWN7002 device within my office?

A: The compact design of the GWN7002 allows for flexible desktop or wall mounting near your main network equipment. Ensure it remains within the recommended operating temperature range (0C to 40C) for optimal performance and longevity.

Q: What is the process for managing multiple GWN7002 devices remotely?

A: Network administrators can manage multiple GWN7002 routers remotely using the built-in centralized management interface. The devices support web-based GUI, SSH, SNMP, and CLI for configuration, monitoring, and updates, making large-scale deployment efficient and secure.

Q: How does the GWN7002 benefit small and medium businesses?

A: The GWN7002 provides enterprise-level security, reliable wired and fiber connectivity, flexible PoE capabilities, and comprehensive management options. These features streamline network deployments, enhance data protection, and reduce operation costs, making it ideal for growing businesses seeking scalable solutions.
