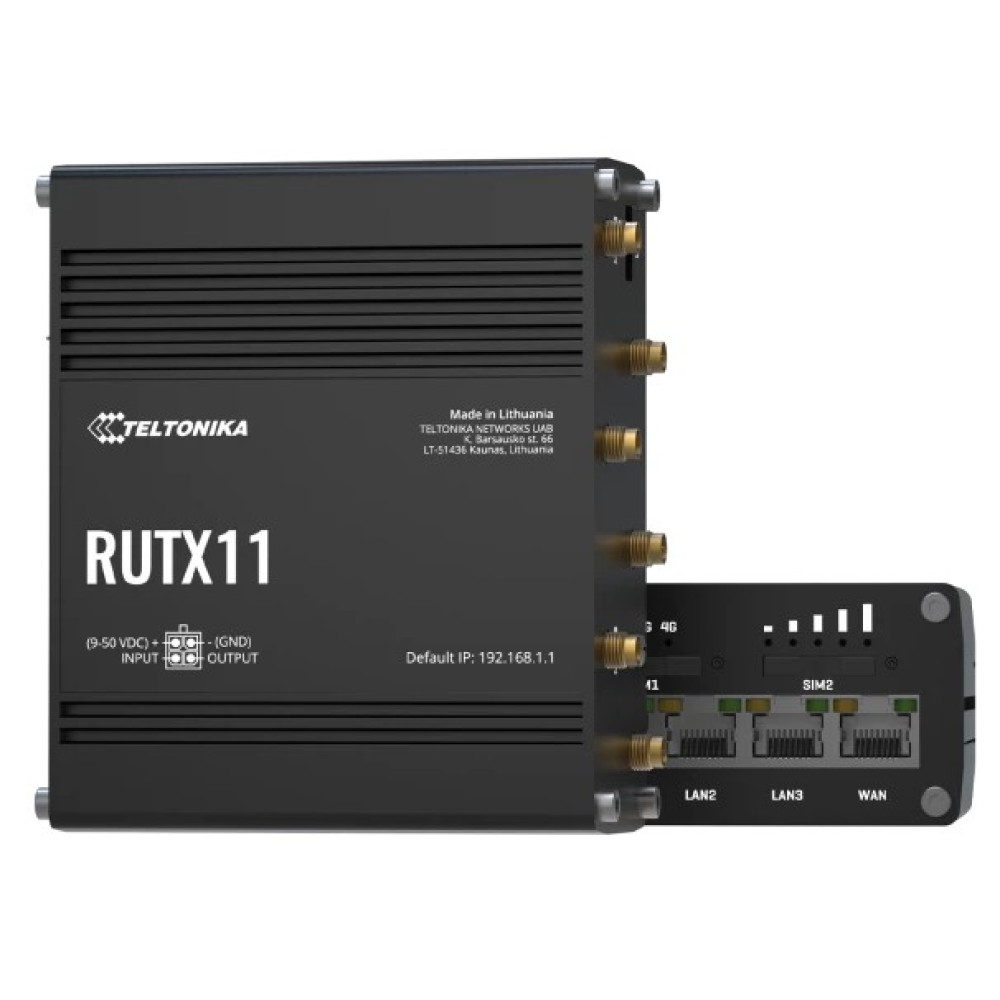

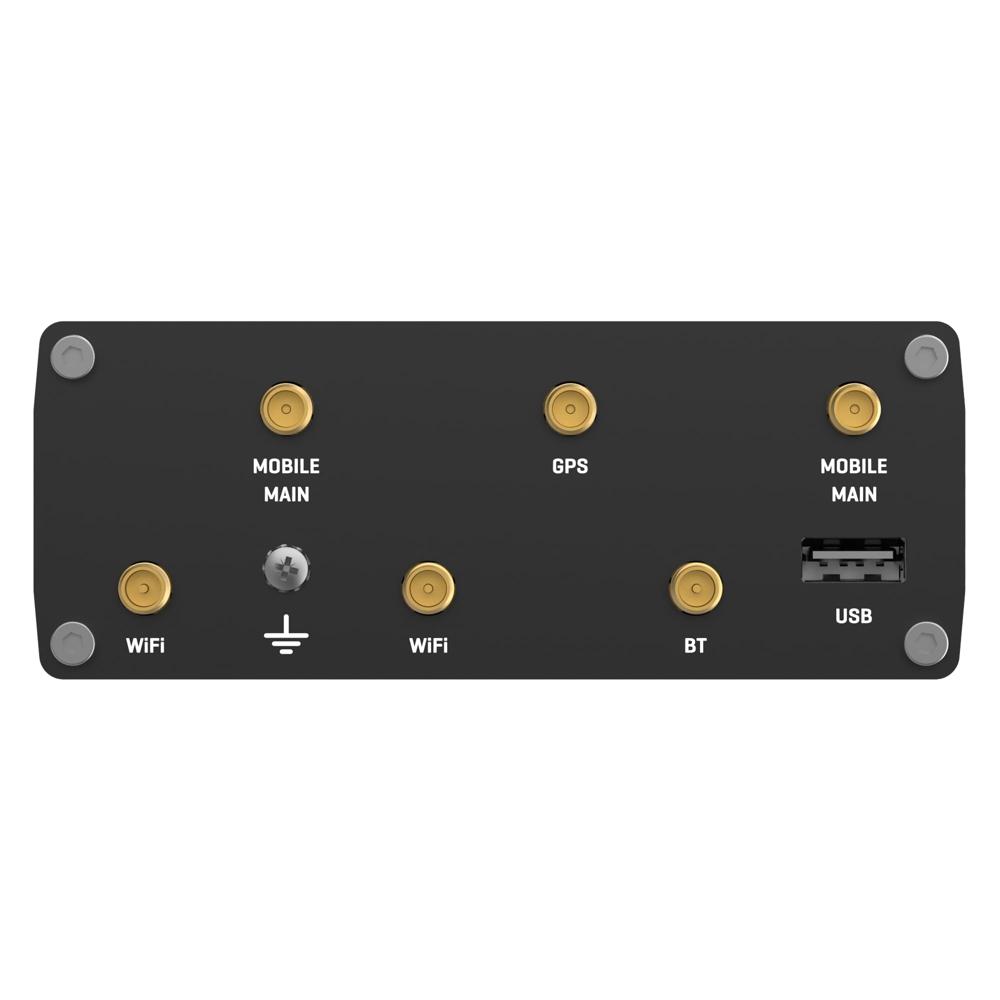

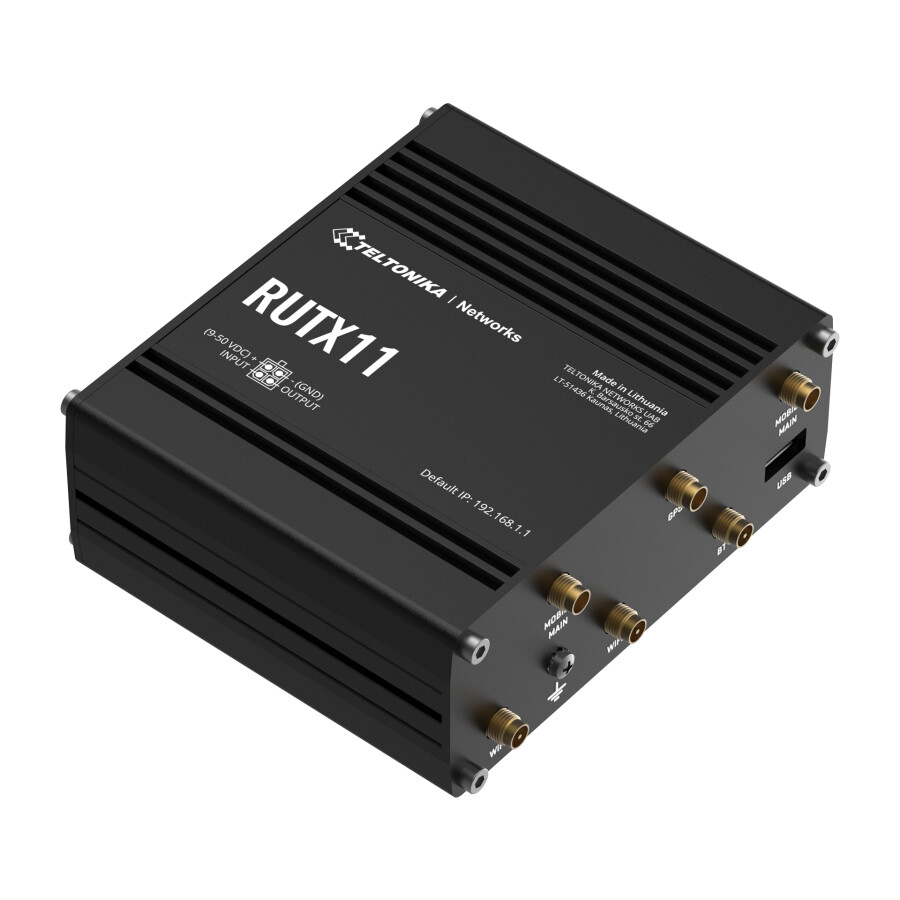

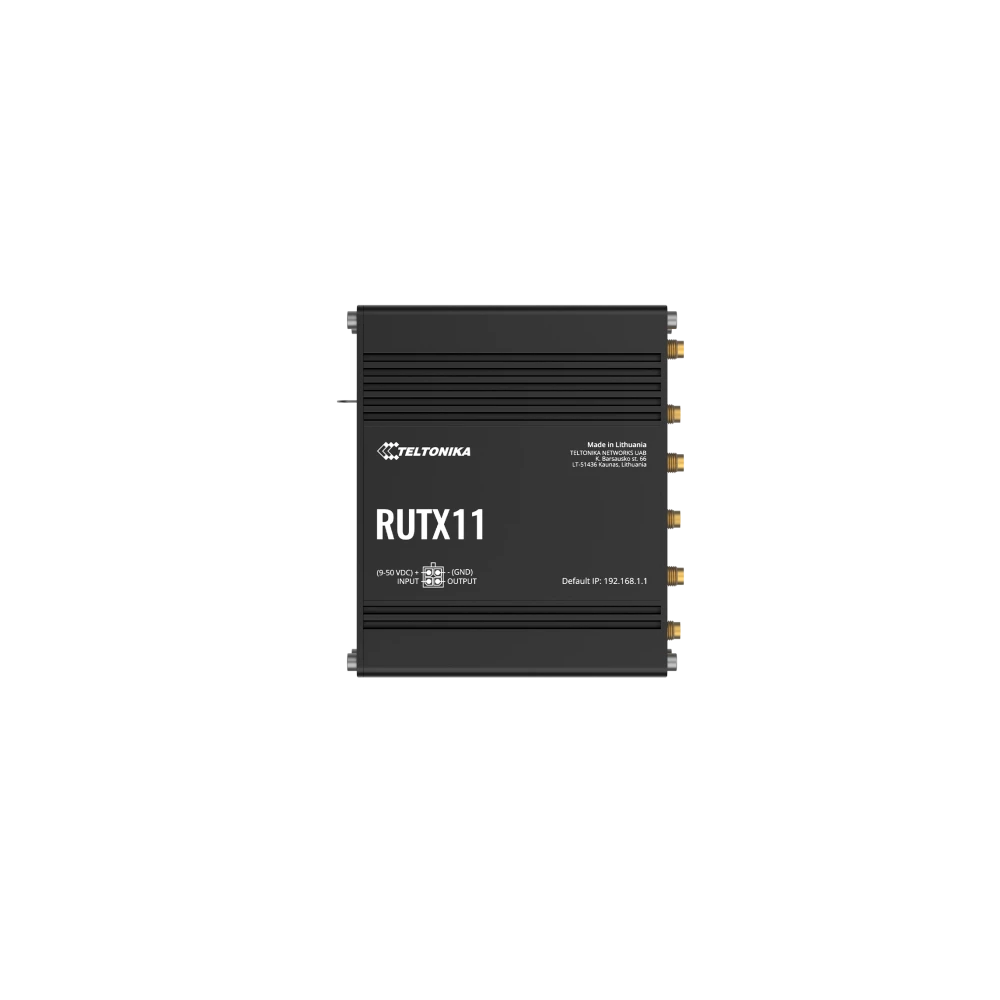

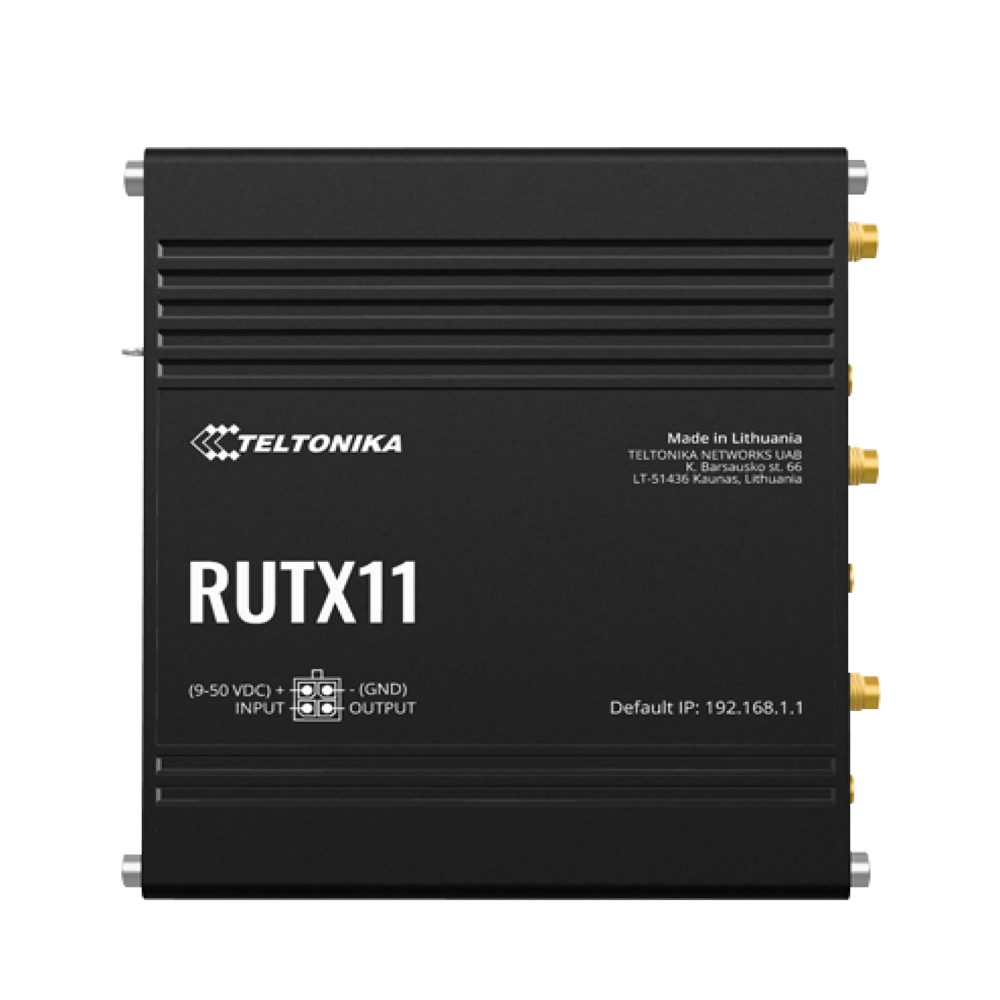

Teltonika RUTX11 Industrial 4G LTE Cat 6 Gigabit Router

About Teltonika RUTX11 Industrial 4G LTE Cat 6 Gigabit Router

High-Speed Industrial 4G Connectivity

The Teltonika RUTX11 is an industrial cellular router built for professional applications requiring reliable connectivity and high data throughput. Its 4G LTE Cat 6 modem supports cellular speeds of up to 300 Mbps download and 50 Mbps upload, with Carrier Aggregation for improved performance on compatible networks.

Key Features

• 4G LTE Cat 6: Supports download speeds up to 300 Mbps with Carrier Aggregation.
• Dual SIM: Two Mini SIM slots with automatic SIM switching and failover options.
• Dual-Band Wi-Fi 5: 802.11ac Wave 2 Wi-Fi on 2.4 GHz and 5 GHz bands.
• Gigabit Ethernet: 4 10/100/1000 Mbps RJ45 ports, including configurable WAN/LAN functionality.
• Wi-Fi Performance: Supports up to 867 Mbps wireless data rates and MU-MIMO.
• Bluetooth LE: Bluetooth Low Energy for short-range connectivity.
• GNSS: Supports GPS, GLONASS, BeiDou, Galileo, and QZSS.
• USB 2.0: USB Type-A port for supported external devices.
• Digital I/O: 1 digital input and 1 digital output.
• Passive PoE: Can be powered through LAN1 using passive PoE.
• Remote Management: Compatible with Teltonika RMS for remote monitoring, configuration, and firmware management.
• RutOS: OpenWrt-based operating system with extensive networking and security functionality.

Advanced Networking

RUTX11 provides advanced routing and network-management functions including static and dynamic routing, policy-based routing, VLAN support, VPN functionality, firewall configuration, and WAN failover. Its dual-SIM architecture allows automatic switching based on configurable conditions such as weak signal, data limits, roaming, or connection failure.

Industrial & IoT Applications

With cellular, Ethernet, Wi-Fi, Bluetooth, GNSS, USB, and digital I/O interfaces, the RUTX11 can be deployed across multiple professional environments:

• Industrial automation and IoT
• Enterprise and branch-office networking
• Transportation and fleet connectivity
• Remote monitoring systems
• Smart infrastructure
• Business WAN backup
• Industrial equipment connectivity
• Railway and transportation applications

Technical Specifications

• Cellular: 4G LTE Cat 6
• Maximum LTE speed: Up to 300 Mbps download / 50 Mbps upload
• SIM: 2 Mini SIM (2FF)
• Wi-Fi: 802.11b/g/n/ac Wave 2 (Wi-Fi 5)
• Wi-Fi bands: 2.4 GHz + 5 GHz
• Maximum Wi-Fi rate: Up to 867 Mbps
• Ethernet: 4 RJ45 Gigabit Ethernet
• Bluetooth: Bluetooth Low Energy
• GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
• USB: 1 USB Type-A, USB 2.0
• Digital I/O: 1 Digital Input + 1 Digital Output
• Power input: 950 VDC
• Maximum power consumption: 16 W
• Operating temperature: -40C to +75C
• Housing: Aluminium
• Ingress protection: IP30
• Dimensions: 115 44.2 95.1 mm
• Weight: 456 g
• Mounting: DIN rail / flat surface
• Operating system: RutOS (OpenWrt-based)
