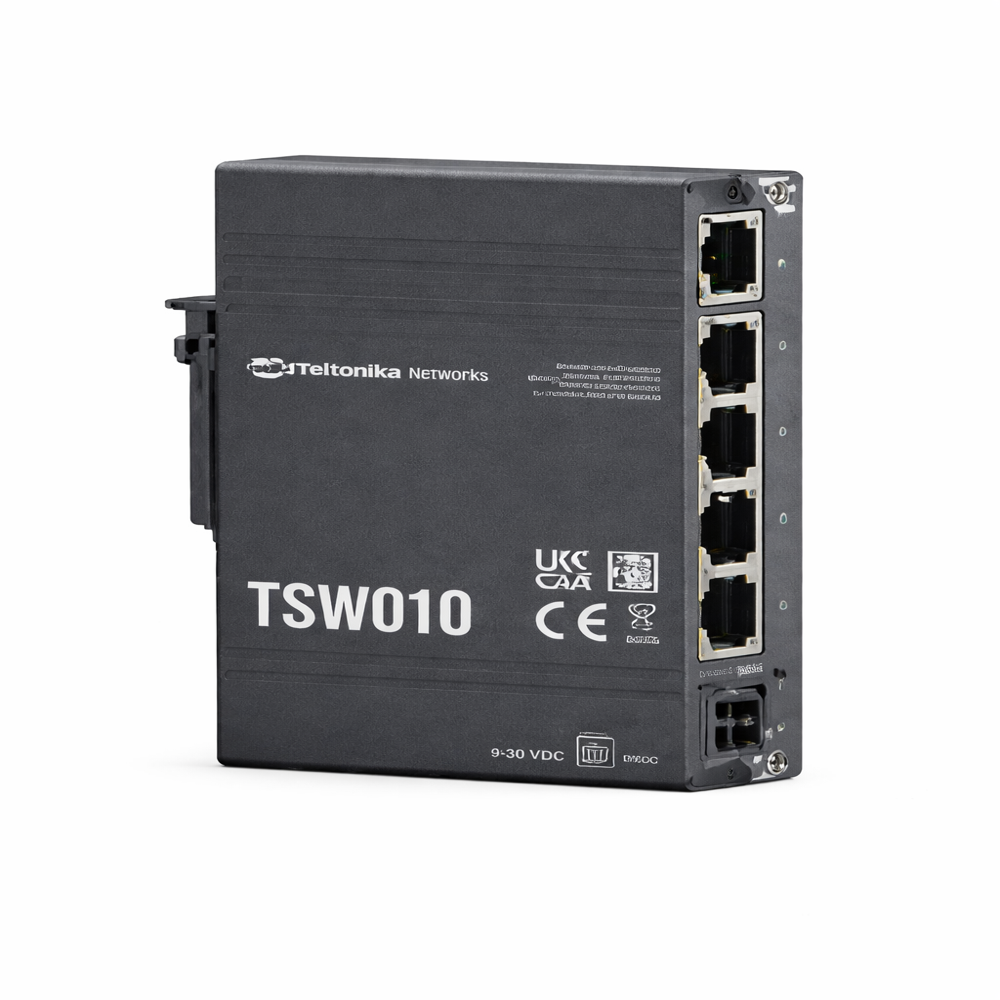

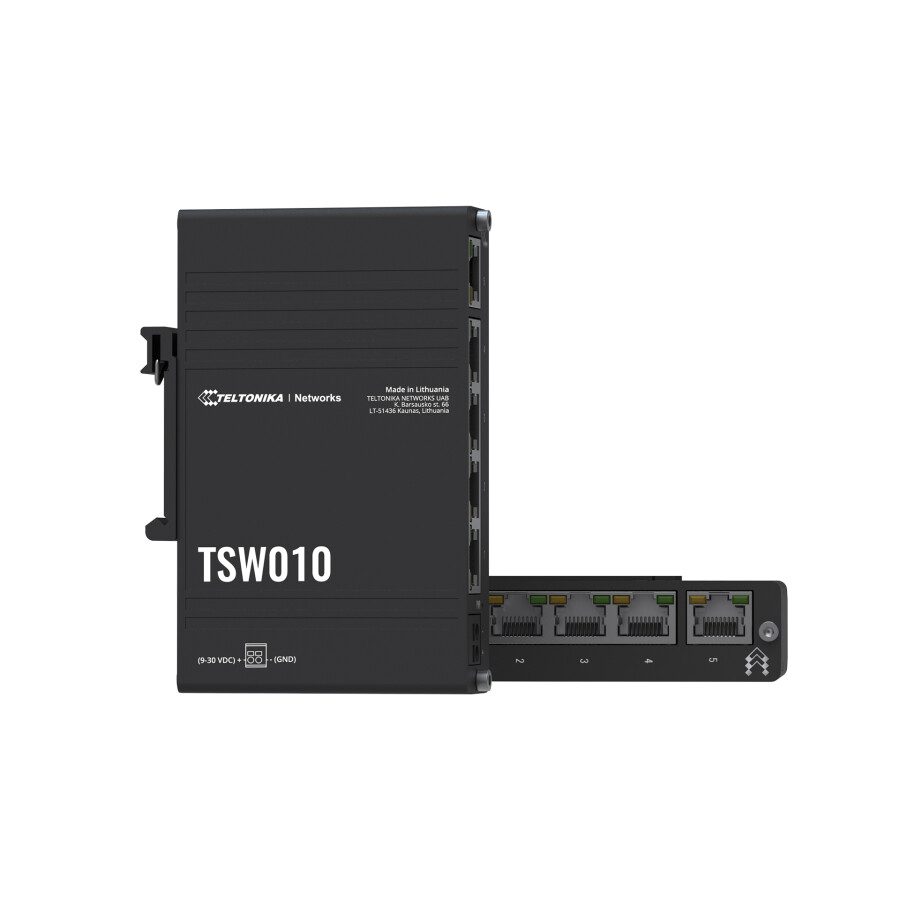

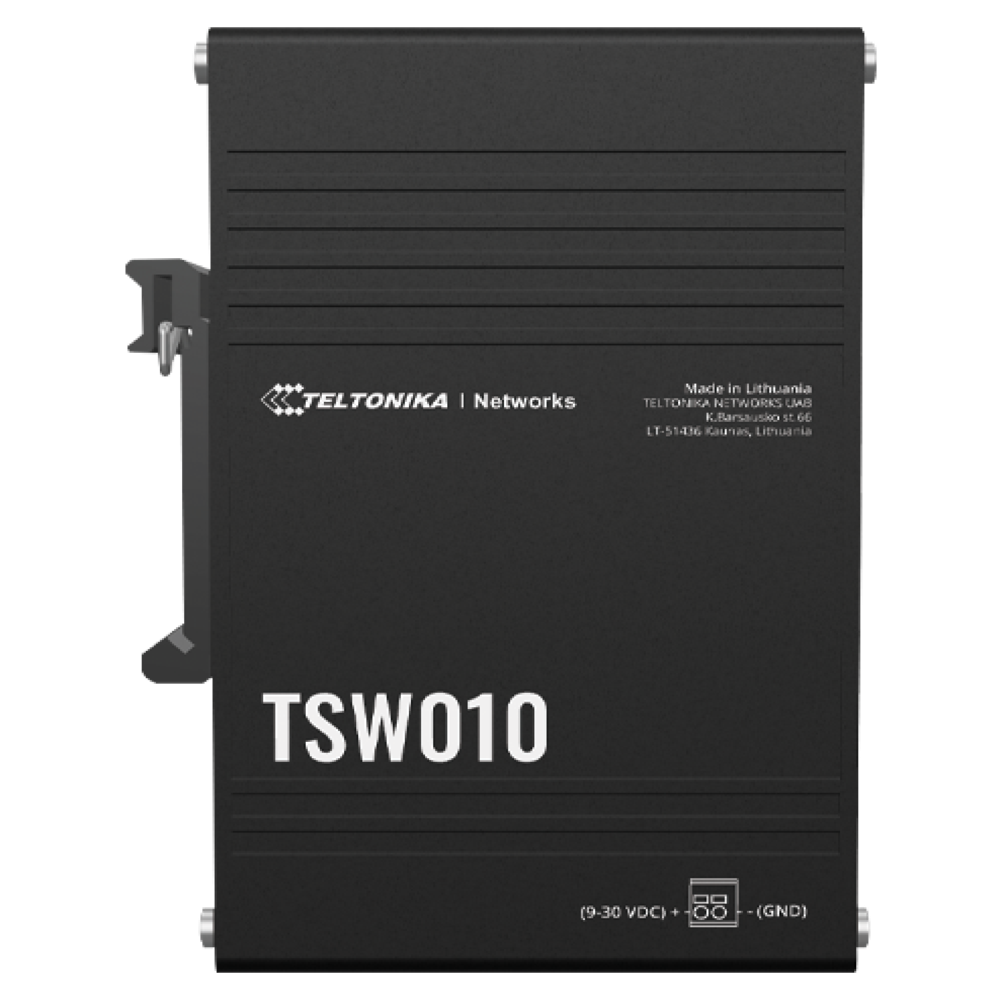

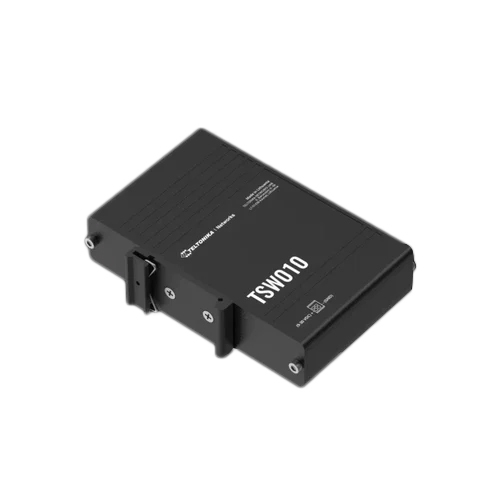

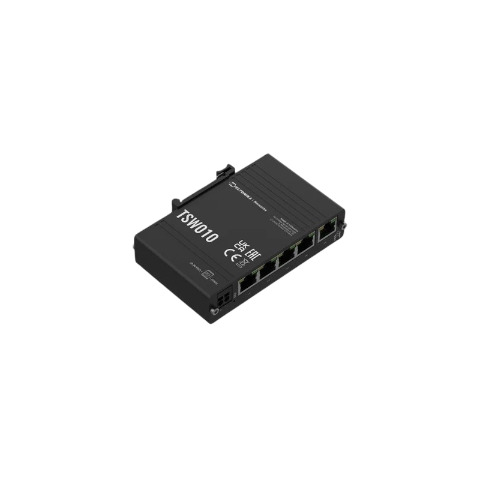

Teltonika TSW010 Compact 5-Port Industrial Ethernet Switch

About Teltonika TSW010 Compact 5-Port Industrial Ethernet Switch

Compact Industrial Ethernet Connectivity

The Teltonika TSW010 provides a simple and reliable way to expand wired network connectivity for industrial and commercial installations. With five Fast Ethernet ports and no configuration required, it enables quick connection of multiple Ethernet devices.

Its compact industrial design and integrated DIN rail mounting make it suitable for control cabinets, automation systems, IoT installations, and other space-constrained environments.

Key Features

• 5 Ethernet Ports: 10/100 Mbps RJ45 ports for connecting multiple network devices.
• Unmanaged Switch: Plug-and-play operation with no configuration required.
• Auto MDI/MDIX: Simplifies Ethernet cable connections by automatically detecting the required connection type.
• DIN Rail Mounting: Integrated DIN rail bracket for convenient industrial installation.
• Industrial Aluminium Housing: Anodized aluminium casing and panels for a robust installation.
• Low Power Consumption: Maximum power consumption of approximately 0.9 W.
• Passive PoE: ETH1 can support passive PoE power input under supported configurations.
• Wide Power Input: Supports 930 VDC; certain order codes also support 1240 VAC.
• Industrial Temperature Range: Designed for operation from -40C to +75C.
• High Internal Switching Capacity: Up to 1 Gbps non-blocking bandwidth.
• 2K MAC Address Table: Supports up to 2,000 MAC address entries.
• Jumbo Frames: Supports frames up to 2048 bytes.

Simple Plug-and-Play Networking

The TSW010 is designed for installations where straightforward Ethernet expansion is required without the complexity of a managed switch. Simply connect Ethernet devices to the available ports and provide power to begin operation.

Its 10/100 Mbps ports provide stable connectivity for applications where Gigabit throughput is not required.

Industrial Applications

The TSW010 can be used for:

• Industrial automation networks
• IoT infrastructure
• CCTV and security networks
• Control cabinets
• Factory and building automation
• Ethernet device expansion
• Transportation and infrastructure systems
• Remote monitoring installations

Technical Specifications

• Switch type: Unmanaged
• Ethernet: 5 RJ45
• Ethernet speed: 10/100 Mbps
• Auto MDI/MDIX: Supported
• Non-blocking bandwidth: 1 Gbps
• MAC address table: 2K entries
• Jumbo frame: Up to 2048 bytes
• Power input: 930 VDC
• AC input: 1240 VAC on applicable order codes
• Passive PoE: Supported through ETH1 on supported configurations
• Maximum power consumption: 0.9 W
• Housing: Anodized aluminium
• Mounting: Integrated DIN rail bracket; wall/flat-surface mounting with additional kit
• Operating temperature: -40C to +75C
• Operating humidity: 595% non-condensing
• Ingress protection: IP30
• Dimensions: 113.1 27.4 80.5 mm
• Weight: Approximately 146.5 g
