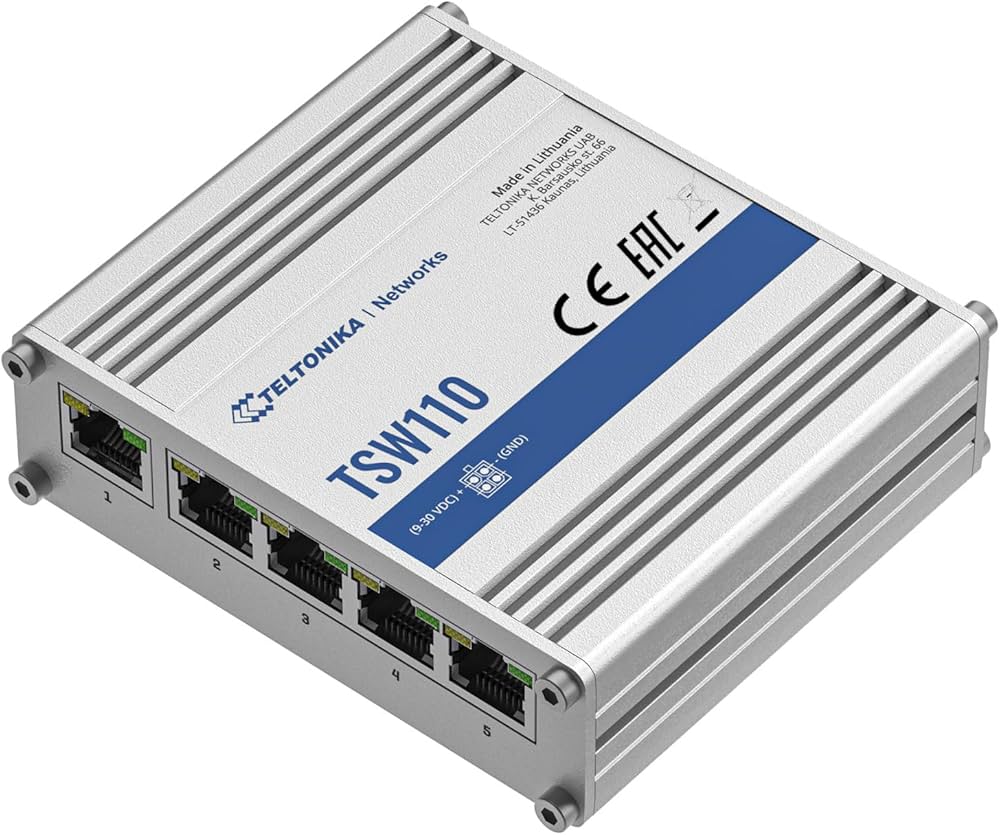

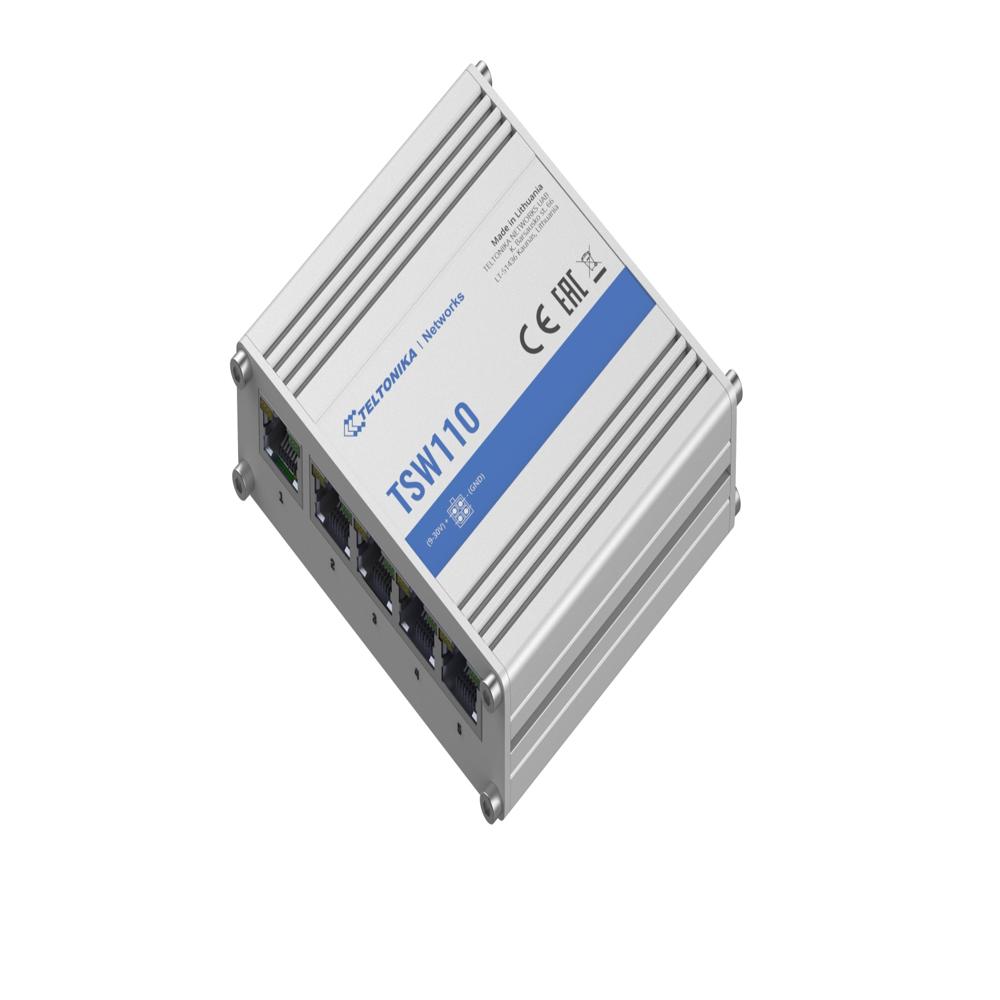

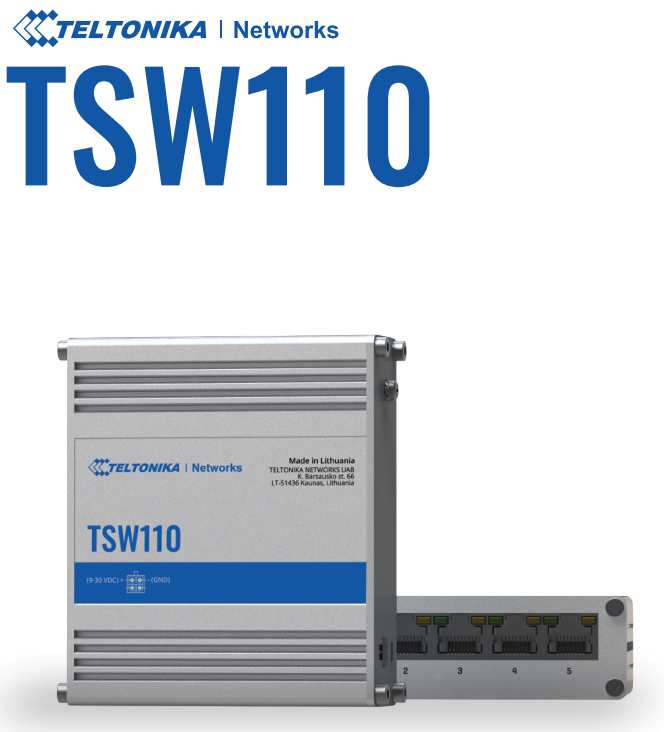

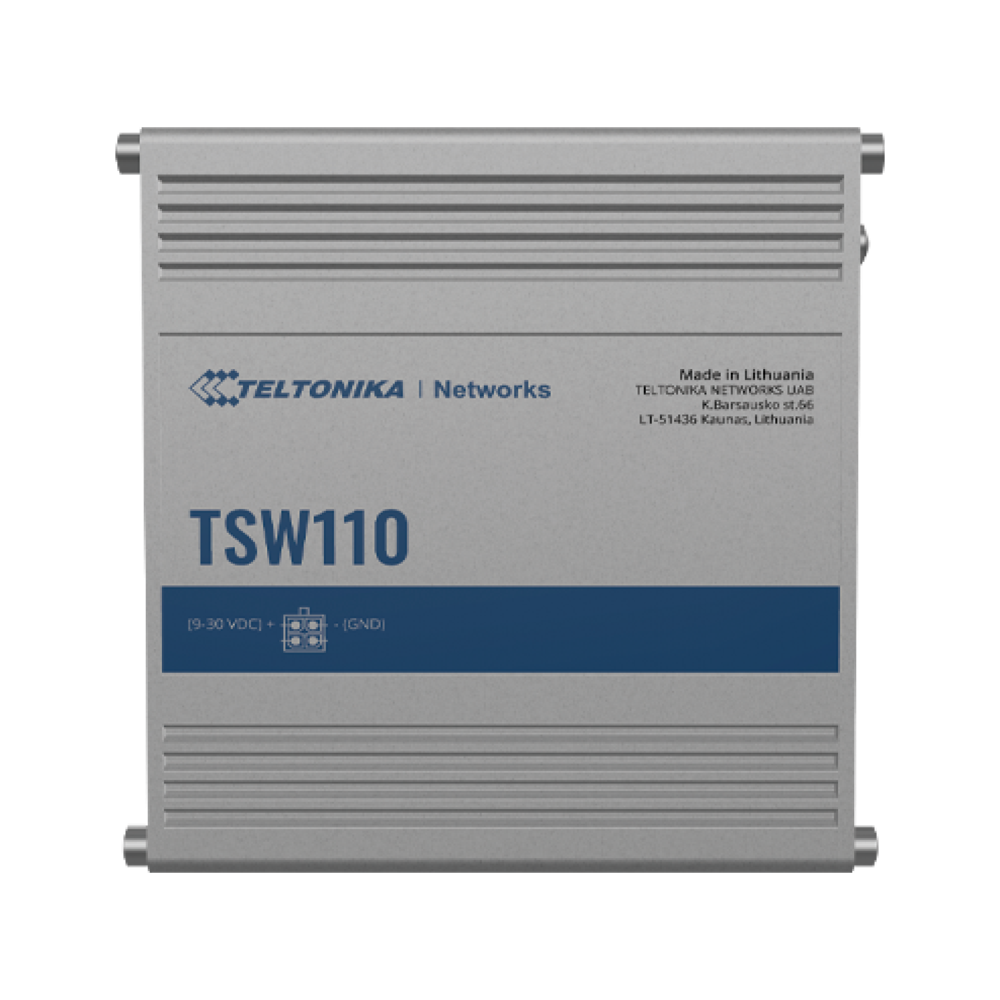

Teltonika TSW110 5 Port Gigabit Industrial Unmanaged Ethernet Switch

About Teltonika TSW110 5 Port Gigabit Industrial Unmanaged Ethernet Switch

Reliable Gigabit Ethernet Connectivity

The Teltonika TSW110 provides a simple and reliable solution for expanding high-speed Ethernet networks. It features five 10/100/1000 Mbps Gigabit Ethernet ports, enabling multiple industrial and network devices to communicate at high data rates.

As an unmanaged Layer 2 switch, the TSW110 offers plug-and-play operation without requiring additional switch configuration. Its compact aluminium construction and wide operating temperature range make it suitable for industrial environments.

Key Features

• 5 Gigabit Ethernet Ports: Supports 10/100/1000 Mbps connectivity.
• Layer 2 Unmanaged: Simple plug-and-play network expansion.
• 10 Gbps Switching Bandwidth: Non-blocking bandwidth for high-speed data transfer.
• Auto MDI/MDIX: Automatically detects Ethernet cable connection requirements.
• 2K MAC Address Table: Supports up to 2,000 MAC addresses.
• 128 KB Packet Buffer: Helps handle network traffic efficiently.
• Jumbo Frames: Supports frames up to 9,216 bytes.
• Passive PoE Input: LAN1 can be used for passive PoE power input; it is not compatible with IEEE 802.3af/at/bt PoE standards.
• Wide DC Input: Supports 930 VDC power input.
• Rugged Aluminium Housing: Full aluminium construction for professional and industrial installations.
• Flexible Mounting: Supports DIN rail and flat-surface installation; wall mounting is possible with an additional kit.
• Wide Temperature Range: Operates from -40C to +75C.

Plug-and-Play Industrial Networking

The TSW110 is designed for installations that require high-bandwidth Ethernet connectivity without the complexity of a managed switch. Connect your router, industrial PC, IP phone, printer, or other Ethernet equipment to the available ports and the switch provides automatic network connectivity.

Its compact form factor makes it suitable for control cabinets, industrial panels, automation systems, and professional networking installations.

Industrial Applications

The TSW110 can be used for:

• Industrial automation networks
• IoT infrastructure
• Industrial PCs and controllers
• CCTV and surveillance networks
• IP phones and office networking
• Transportation and infrastructure
• Smart-city systems
• Building automation
• Network equipment expansion
• High-bandwidth Ethernet applications

Technical Specifications

• Switch type: Layer 2 unmanaged

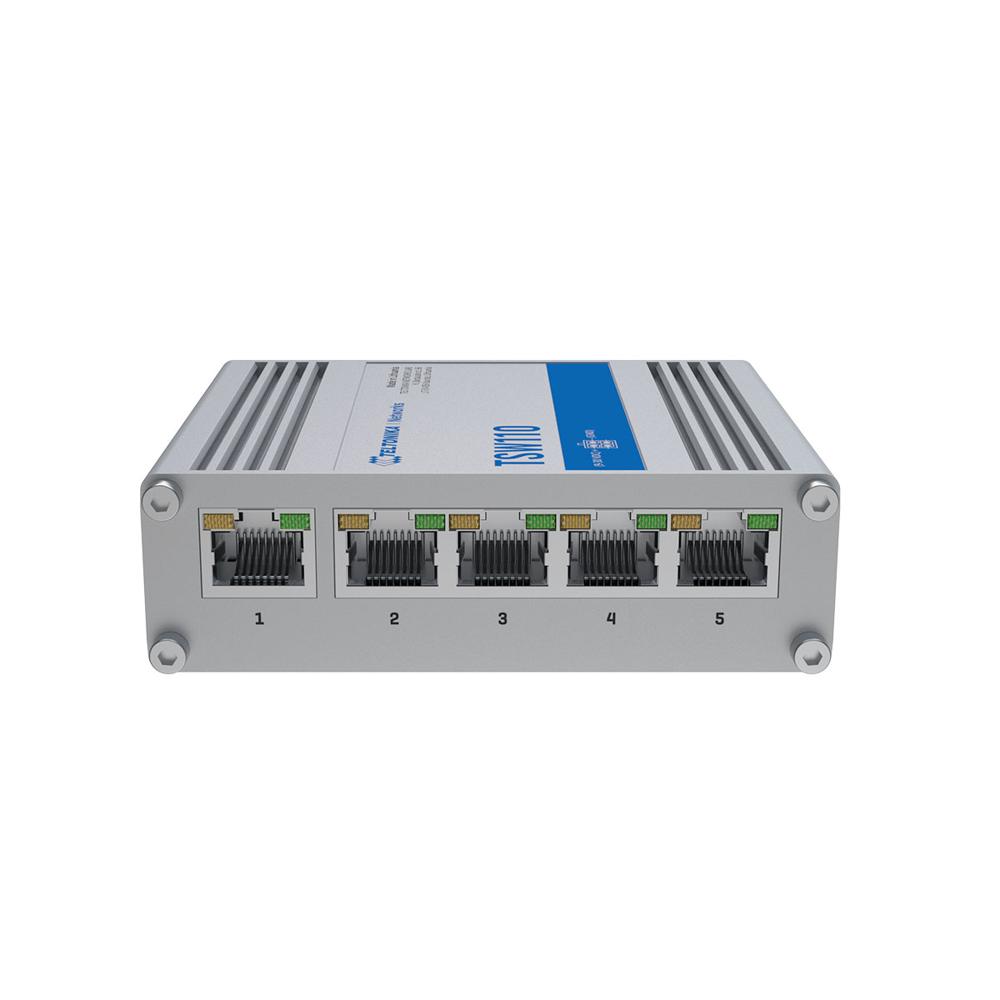

• Ethernet: 5 RJ45
• Ethernet speed: 10/100/1000 Mbps
• Non-blocking bandwidth: 10 Gbps
• MAC address table: 2K entries
• Packet buffer: 128 KB
• Jumbo frame: Up to 9,216 bytes
• Auto MDI/MDIX: Supported
• Power input: 930 VDC
• Passive PoE: Supported through LAN1 for device power input
• Maximum power consumption: <1.8 W
• Housing: Full aluminium
• Mounting: DIN rail / flat surface / wall with additional kit
• Operating temperature: -40C to +75C
• Operating humidity: 1090% non-condensing
• Ingress protection: IP30
• Dimensions: 100 30 85 mm
• Weight: Approximately 227 g
