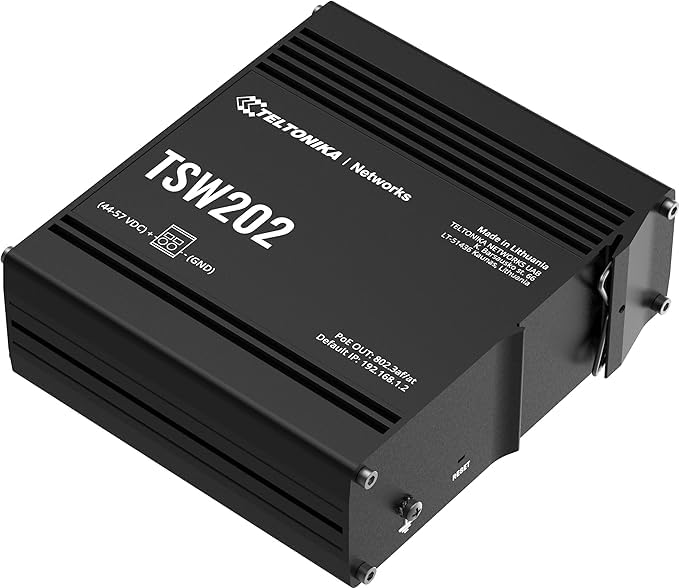

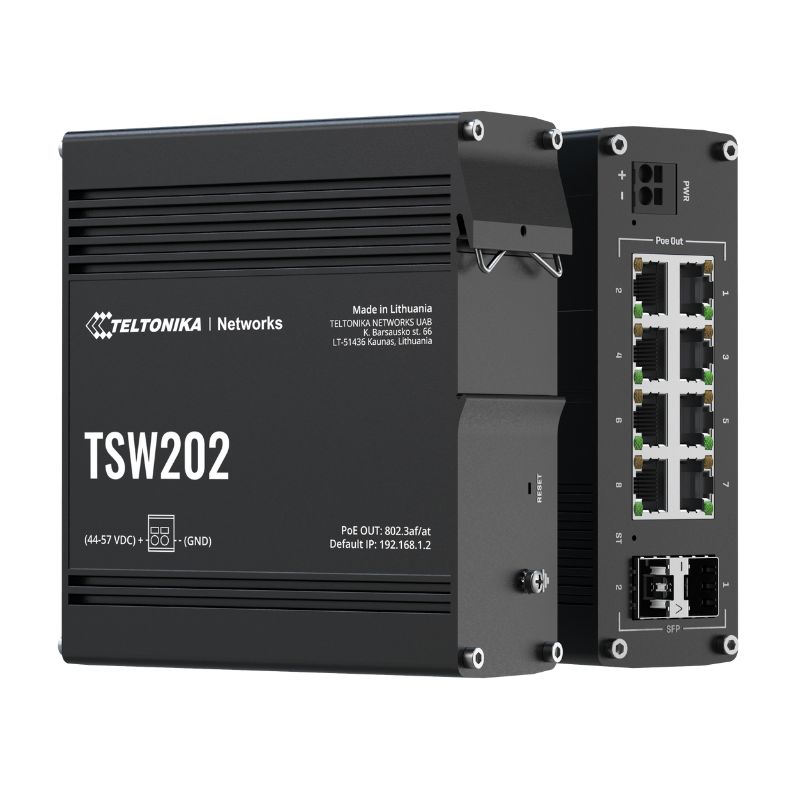

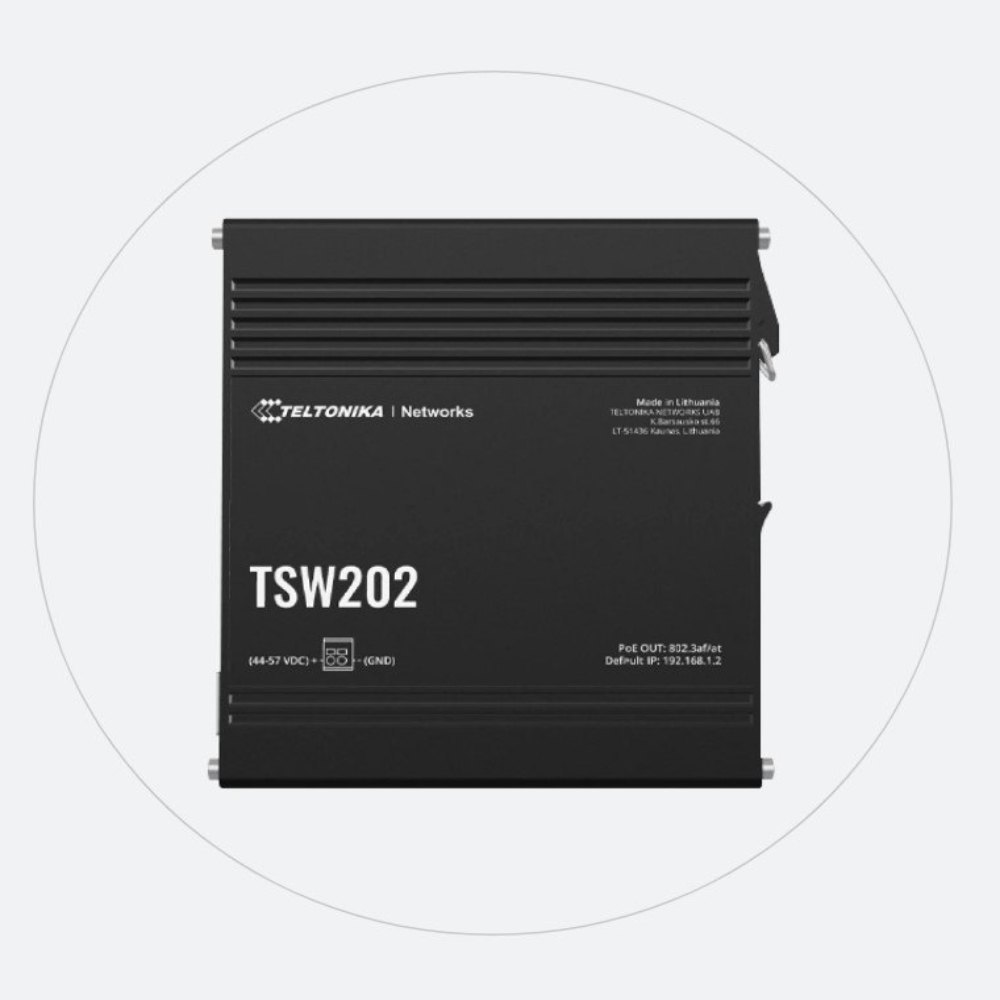

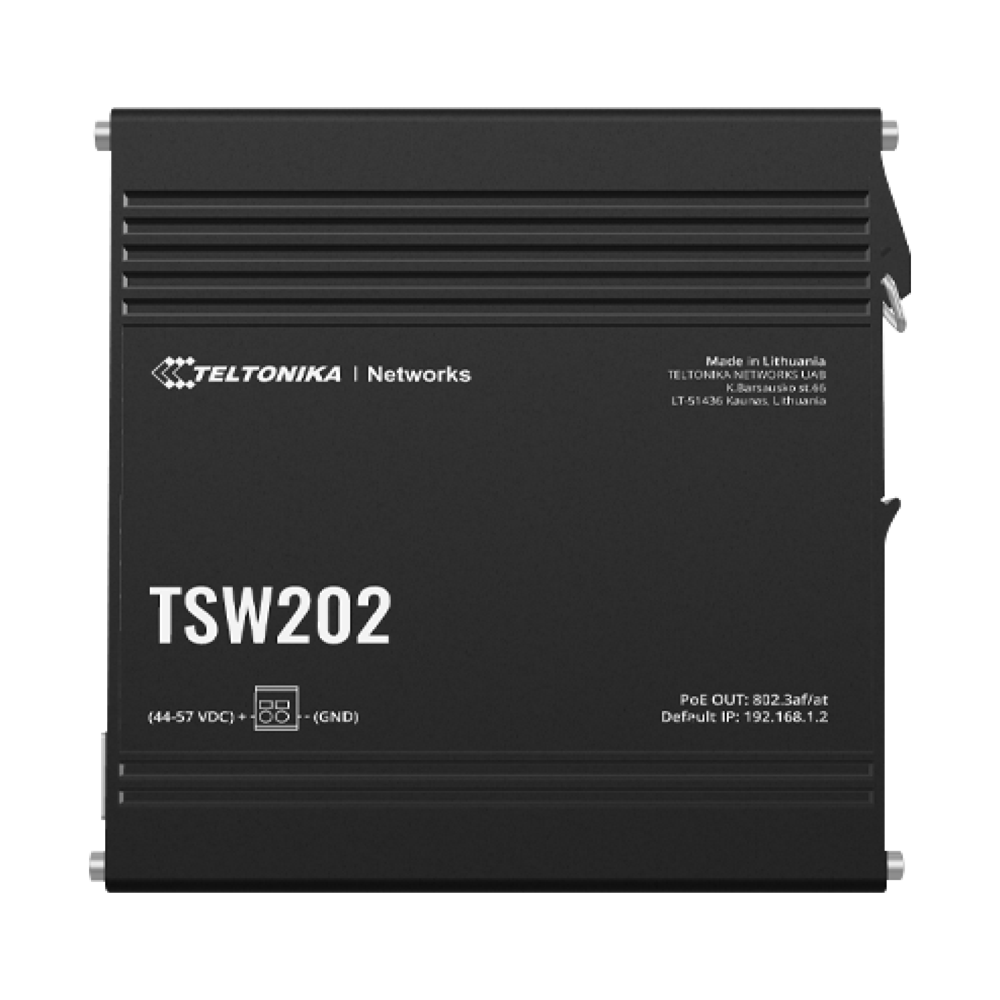

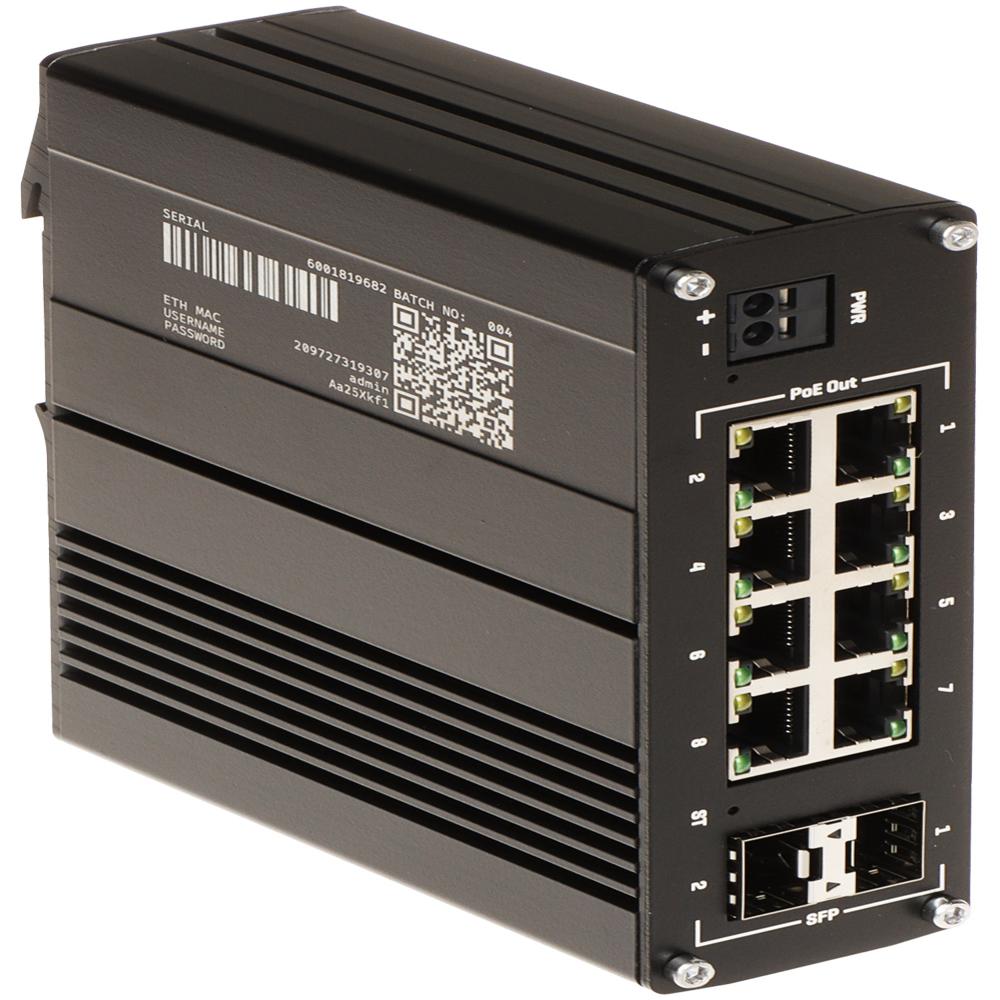

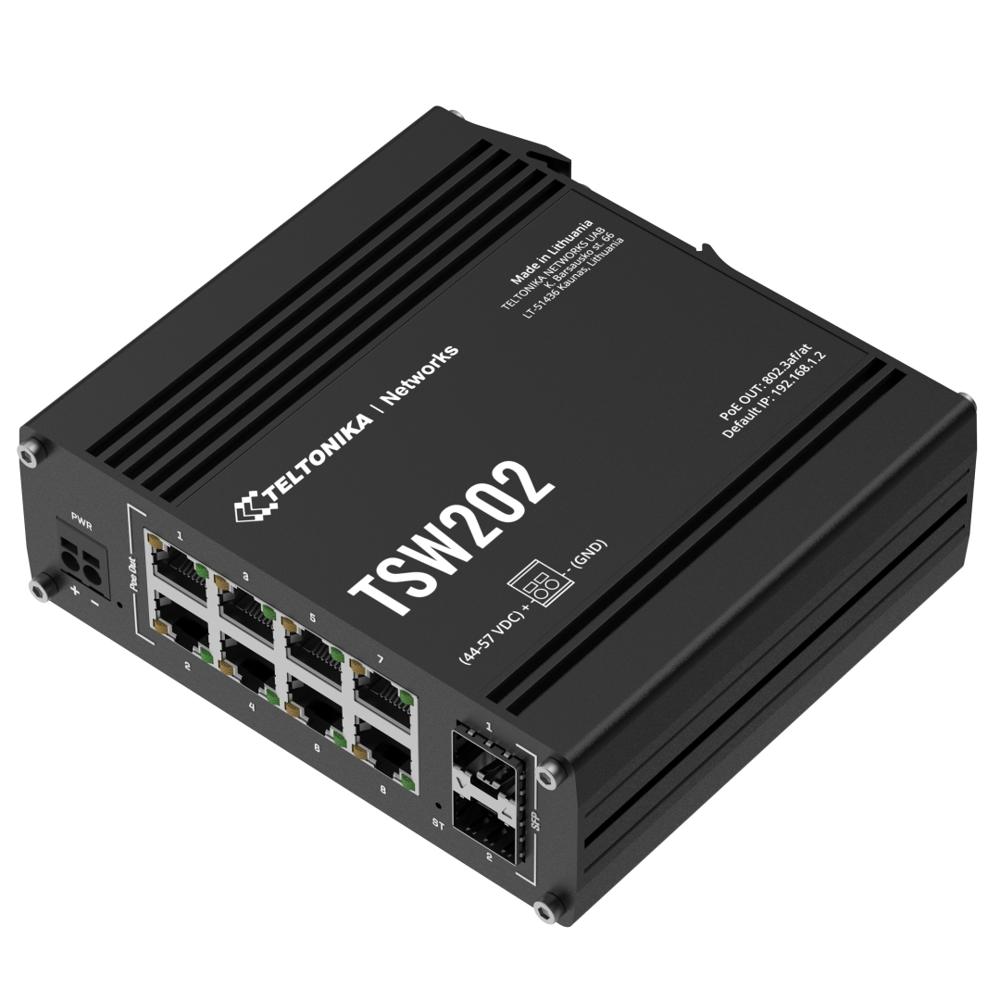

Teltonika TSW202 Managed 8 Port Gigabit PoE+ Ethernet Switch

About Teltonika TSW202 Managed 8 Port Gigabit PoE+ Ethernet Switch

Advanced Managed Industrial Networking

The Teltonika TSW202 combines high-speed Gigabit Ethernet, PoE+ power delivery, fibre connectivity, and advanced network management in a compact industrial switch. Its eight Gigabit Ethernet ports support both data and PoE+ power, while two SFP ports provide fibre-optic connectivity for extended network links.

Unlike an unmanaged switch, the TSW202 provides granular configuration and monitoring capabilities through Teltonika Networks OS (TSWOS). It supports Layer 2 management with additional Layer 3 functions for flexible network control.

Key Features

• 8 Gigabit Ethernet Ports: Supports 10/100/1000 Mbps connectivity.
• 8 PoE+ Ports: All eight Ethernet ports support IEEE 802.3af/802.3at.
• 30 W per PoE Port: Provides up to 30 W of PoE power per port at the PSE.
• 240 W Total PoE Budget: Supports up to 240 W total PoE power with a suitable power supply.
• 2 SFP Ports: Supports fibre-optic networking for longer-distance connections.
• Managed Layer 2 Switch: Provides VLAN, STP/RSTP, port isolation, port mirroring, loop protection, and other management functions.
• Layer 3 Features: Includes static IPv4/IPv6 routing and other advanced network capabilities.
• PROFINET Support: Supports PROFINET for industrial automation applications.
• EtherNet/IP & MRP: Supports industrial networking protocols including EtherNet/IP and MRP.
• TSWOS: Teltonika Networks operating system for switch configuration and management.
• SNMP: Supports SNMP v2 and v3 for network monitoring and management.
• QoS: Provides traffic prioritisation and bandwidth-control functions.
• Industrial Construction: Anodized aluminium housing designed for demanding environments.
• DIN Rail Mounting: Integrated DIN rail bracket for convenient industrial installation.

Advanced PoE+ & Fibre Connectivity

The TSW202 combines PoE+ and SFP connectivity in one industrial platform. Compatible IP cameras, wireless access points, industrial equipment, and other PoE-enabled devices can receive both data and power through Ethernet.

The two SFP ports allow fibre uplinks to be integrated into the network, making the switch suitable for installations requiring longer-distance or electrically isolated network connections.

Industrial Network Management

TSW202 provides network administrators with detailed control over connected ports and traffic. Features include VLAN configuration, forwarding-table management, STP/RSTP, port isolation, port mirroring, storm control, rate limiting, QoS, and diagnostics.

For industrial deployments, support for PROFINET, EtherNet/IP, and MRP enables integration into automation and industrial Ethernet environments.

Applications

• Industrial automation and control
• PROFINET industrial networks
• IP surveillance and CCTV
• Wireless access point deployments
• Smart-city infrastructure
• Transportation networks
• Energy and utility systems
• Enterprise network infrastructure
• Fibre-connected industrial networks
• Building automation
• IoT infrastructure

Technical Specifications

• Switch type: Managed Layer 2 with additional Layer 3 features
• Ethernet: 8 RJ45
• Ethernet speed: 10/100/1000 Mbps
• PoE ports: 8
• PoE standards: IEEE 802.3af / 802.3at
• Maximum PoE output: Up to 30 W per port
• Total PoE budget: Up to 240 W
• SFP: 2 SFP ports
• Non-blocking bandwidth: 20 Gbps
• Forwarding rate: 14.88 Mpps
• Packet buffer: 512 KB
• MAC address table: 8K entries
• Jumbo frame: Up to 10,000 bytes
• Input voltage: 757 VDC
• PoE input voltage: 4457 VDC
• Power consumption: <3 W idle / up to 8 W maximum without PoE
• Maximum PoE consumption: Up to approximately 248 W
• Housing: Anodized aluminium
• Mounting: Integrated DIN rail bracket / wall mounting with additional kit / flat surface
• Operating temperature: -40C to +75C
• Operating humidity: 1090% non-condensing
• Ingress protection: IP30
• Dimensions: 132 44.2 122.2 mm
• Weight: Approximately 610 g
• Operating system: Teltonika Networks OS (TSWOS)
