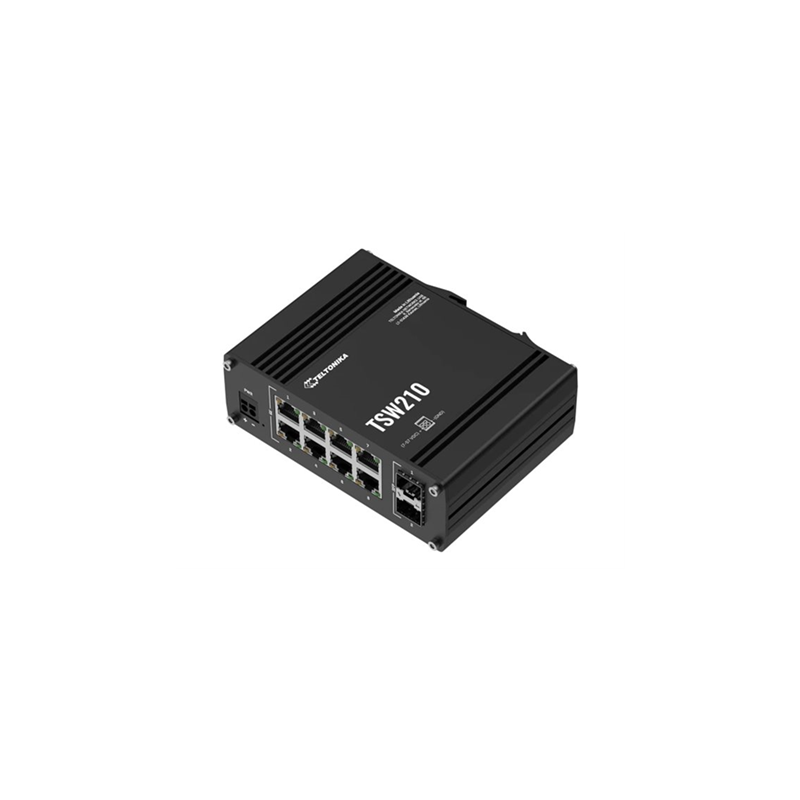

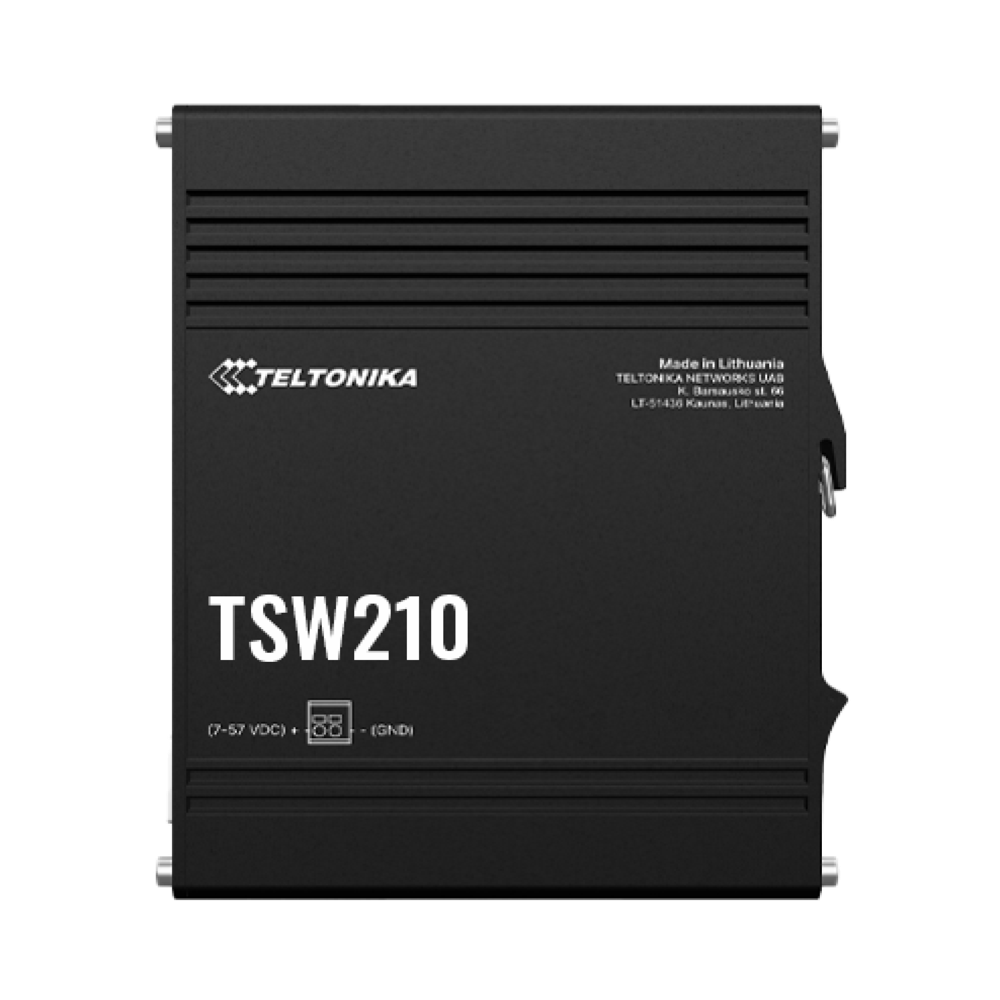

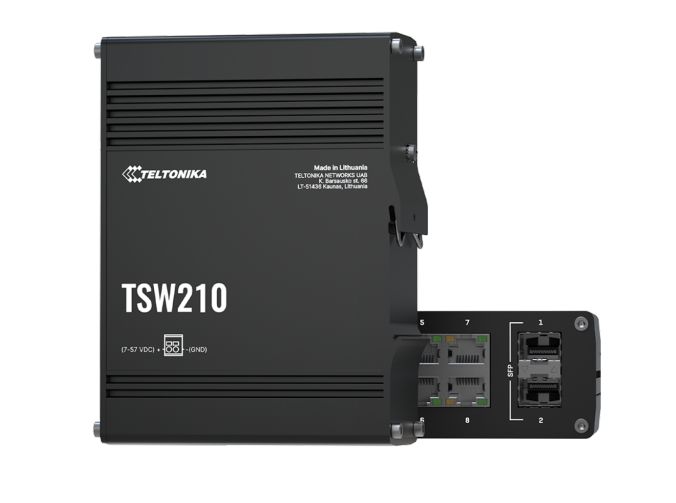

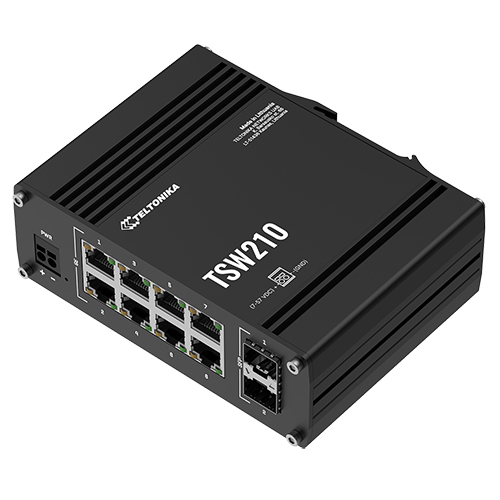

Teltonika TSW210 Industrial 8 Port Gigabit Ethernet Switch with SFP

About Teltonika TSW210 Industrial 8 Port Gigabit Ethernet Switch with SFP

Powerful Industrial Gigabit Networking

The Teltonika TSW210 provides a simple and reliable way to expand and centralise wired network connections. It features 8 RJ45 Gigabit Ethernet ports supporting 10/100/1000 Mbps and 2 SFP ports for fibre-optic connectivity, allowing network devices to be connected over longer distances while maintaining high-speed communication.

Plug-and-Play Operation

Designed as an unmanaged Ethernet switch, the TSW210 works without complicated configuration. Simply connect the required network devices and power supply for quick deployment in industrial, commercial and infrastructure networks.

Gigabit + Fibre Connectivity

The combination of 8 Gigabit Ethernet ports and 2 SFP interfaces provides flexible copper and fibre networking. The switch offers 20 Gbps non-blocking bandwidth, a 128 KB packet buffer, 2K MAC address table and jumbo-frame support up to 9216 bytes.

Rugged Industrial Design

The TSW210 features a durable aluminium housing and supports DIN rail, wall and flat-surface installation. It is designed to operate in harsh environments with an operating temperature range of -40C to +75C and an IP30-rated enclosure.

Key Features

• 8 Gigabit Ethernet ports
• 10/100/1000 Mbps Ethernet connectivity
• 2 SFP ports for fibre-optic networking
• Unmanaged, plug-and-play operation
• 20 Gbps non-blocking bandwidth
• 2K MAC address table
• 9216-byte jumbo frame support
• Auto MDI/MDIX crossover
• Industrial aluminium housing
• DIN rail, wall and surface mounting options
• Wide operating temperature: -40C to +75C
• IP30 protection
• 2-pin industrial DC power input
• Grounding screw for industrial installation

Technical Specifications

• Ethernet: 8 RJ45, 10/100/1000 Mbps
• SFP: 2 SFP ports
• Bandwidth: 20 Gbps
• Packet Buffer: 128 KB
• MAC Table: 2K entries
• Jumbo Frame: Up to 9216 bytes
• Power Input: 757 VDC according to the datasheet; current documentation also lists 957 V for the updated specification
• Power Consumption: Up to approximately 3.714 W depending on documentation/version
• Operating Temperature: -40C to +75C
• Housing: Aluminium
• Protection: IP30
• Dimensions: 132 44.2 95.1 mm
• Mounting: DIN rail / wall / flat surface

Applications

• Industrial Ethernet networks
• Fibre backbone connectivity
• CCTV and surveillance networks
• Solar farms and renewable-energy systems
• Factory automation and infrastructure
• ISP and telecom network installations
• Enterprise and commercial networking
• Remote and harsh-environment deployments
