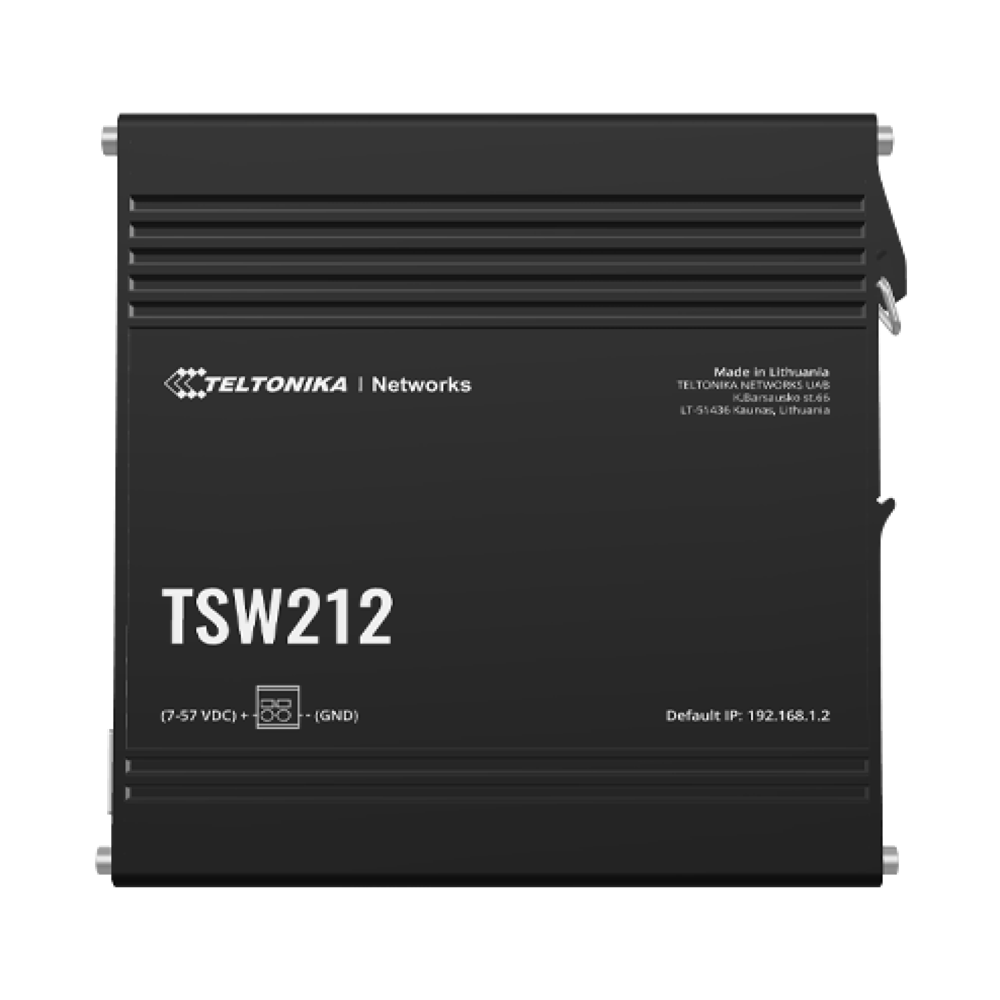

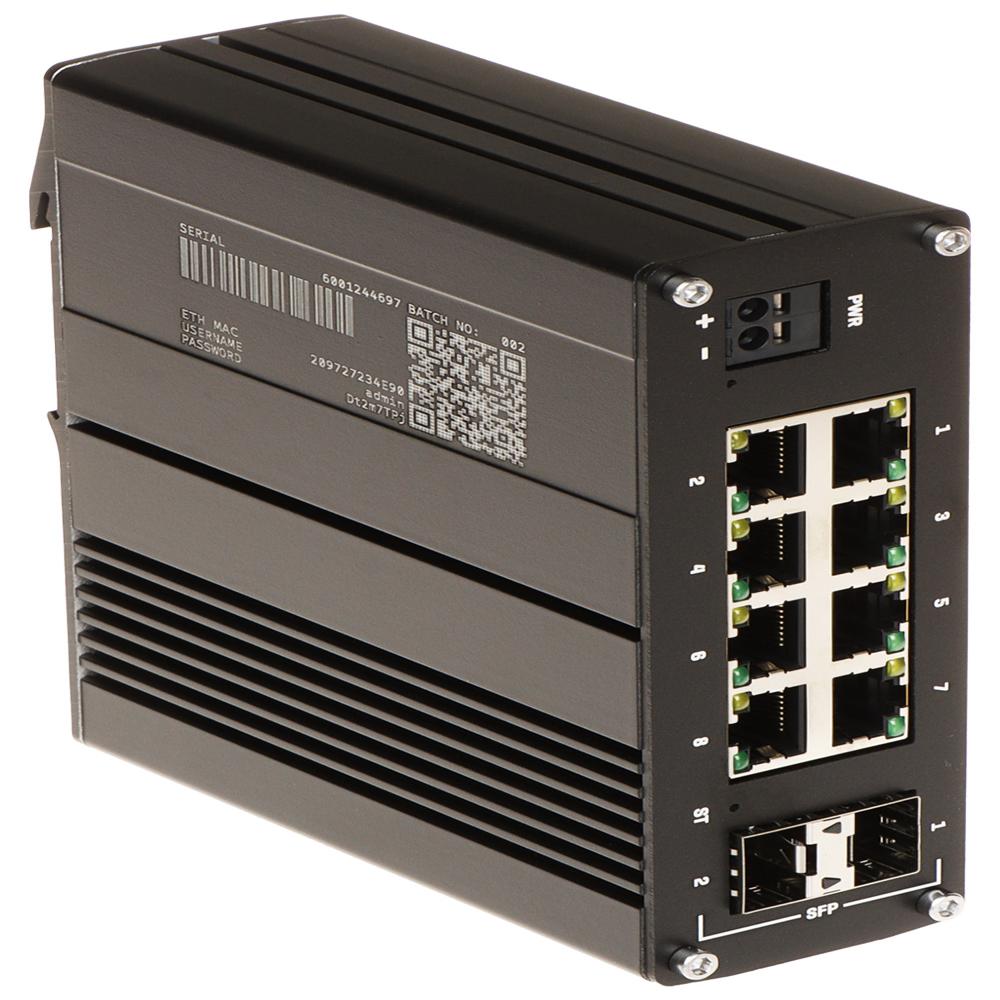

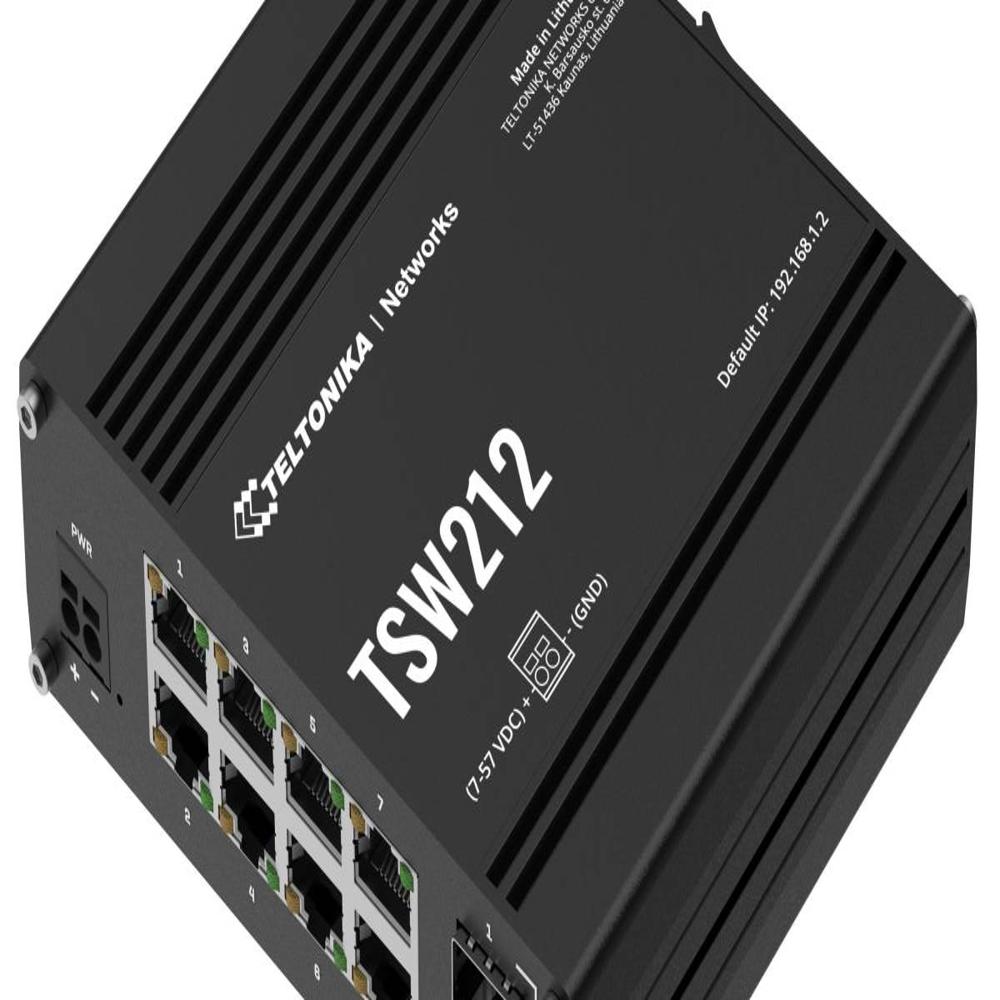

Teltonika TSW212 Managed 8 Port Gigabit Ethernet Switch with 2 SFP Ports

About Teltonika TSW212 Managed 8 Port Gigabit Ethernet Switch with 2 SFP Ports

Advanced Managed Industrial Networking

The Teltonika TSW212 provides powerful network management capabilities in a rugged industrial form factor. With 8 10/100/1000 Mbps Gigabit Ethernet ports and 2 SFP ports, it enables reliable copper and long-distance fibre connectivity for industrial networks, infrastructure and enterprise applications.

L2 Management with L3 Features

TSW212 provides comprehensive Layer 2 management with additional Layer 3 functionality. Network administrators can configure VLANs, STP/RSTP, loop protection, port isolation, port mirroring and forwarding-table functions, while static IPv4/IPv6 routing and DHCPv6 client support provide additional network flexibility.

Industrial Protocol Support

Designed for industrial automation, the TSW212 supports PROFINET, EtherNet/IP and MRP. PROFINET Class B support is available with the appropriate order code, helping integrate the switch into industrial automation and control environments.

High-Speed Ethernet & Fibre Connectivity

The switch delivers 20 Gbps non-blocking bandwidth, with a 512 KB packet buffer, 8K MAC address table and jumbo-frame support up to 10,000 bytes. The two SFP ports enable high-speed fibre connections for extended-distance networking and backbone links.

Advanced QoS & Security

TSW212 provides QoS capabilities including port, DSCP, 802.1p and TOS prioritisation, along with SP/WFQ/WRR scheduling. Rate limiting and storm control help manage network traffic. Security features include port-based 802.1X access control, RADIUS/TACACS+ support and authentication protection.

Teltonika Networks OS

The switch runs TSWOS, Teltonika Networks' switch operating system, providing an intuitive interface for configuration and management. It also supports firmware updates, configuration profiles, backup functions and remote management capabilities through RMS.

Rugged Industrial Construction

The TSW212 uses an anodized aluminium housing and supports DIN rail, wall and flat-surface installation. It is designed for demanding environments with an operating temperature range of -40C to +75C, 1090% non-condensing humidity and an IP30 protection rating.

Key Features

• 8 Gigabit Ethernet ports
• 2 SFP ports for fibre connectivity
• L2 managed switch with additional L3 features
• 10/100/1000 Mbps Ethernet
• 20 Gbps non-blocking bandwidth
• 8K MAC address table
• Up to 10,000-byte jumbo frames
• PROFINET support
• EtherNet/IP support
• MRP client and manager support
• VLAN, STP/RSTP and loop protection
• Static IPv4 & IPv6 routing
• DHCPv6 client
• Port isolation and port mirroring
• SNMP v2/v3 and LLDP
• QoS and traffic management
• Rate limiting and storm control
• 802.1X port-based network access control
• TSWOS operating system
• RMS support
• Rugged anodized aluminium housing
• Integrated DIN rail mounting
• -40C to +75C operating temperature
• IP30 protection

Technical Specifications

• Ethernet: 8 RJ45, 10/100/1000 Mbps
• Fibre: 2 SFP
• Switch Type: Managed L2 with additional L3 features
• Non-Blocking Bandwidth: 20 Gbps
• Packet Buffer: 512 KB
• MAC Address Table: 8K entries
• Jumbo Frame: Up to 10,000 bytes
• RAM: 128 MB DDR3
• Flash: 16 MB
• Input Voltage: 757 VDC
• Power Consumption: Idle <2.5 W / Maximum 6 W
• Housing: Anodized aluminium
• Dimensions: 132 44.2 122 mm
• Weight: Approximately 615 g
• Mounting: DIN rail / wall / flat surface
• Operating Temperature: -40C to +75C
• Ingress Protection: IP30

Applications

• Industrial automation networks
• Factory and manufacturing infrastructure
• Enterprise network management
• Fibre backbone networks
• Telecom and ISP infrastructure
• CCTV and surveillance networks
• Smart infrastructure
• Transportation systems
• Energy and utility networks
• Industrial IoT deployments
