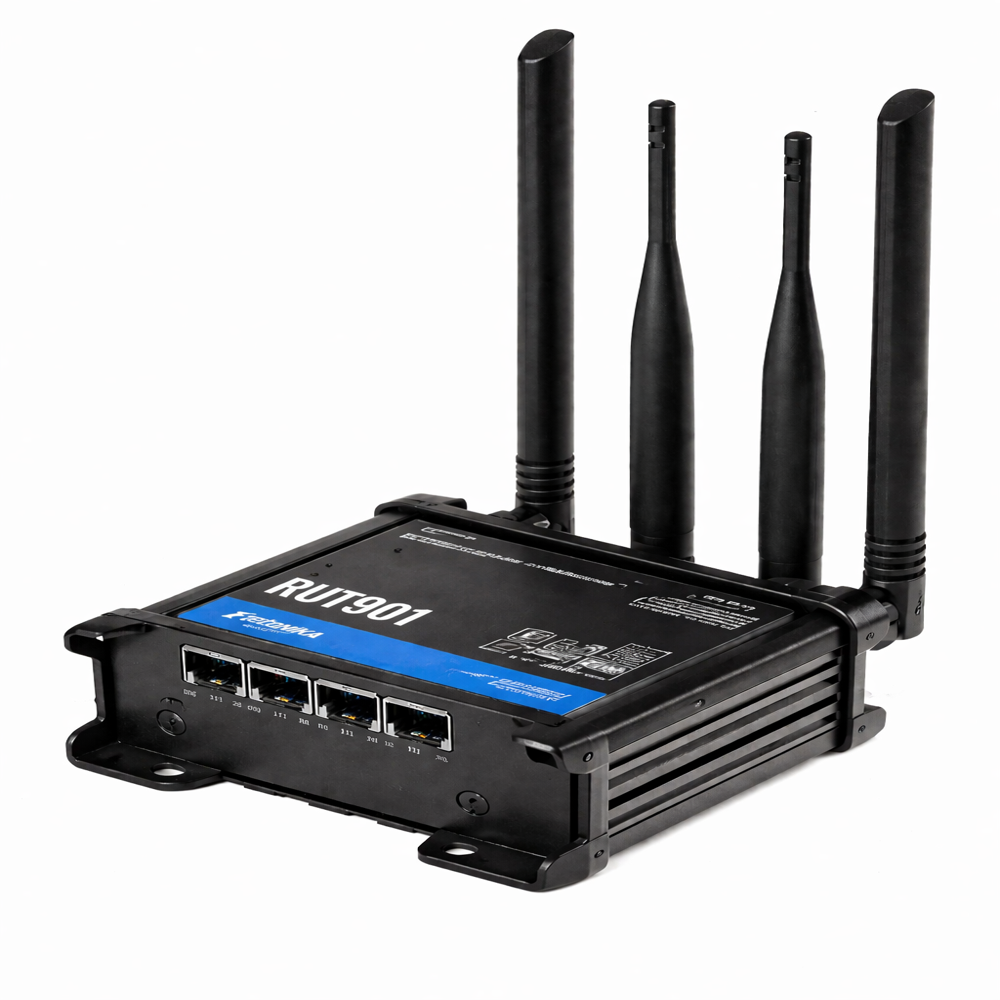

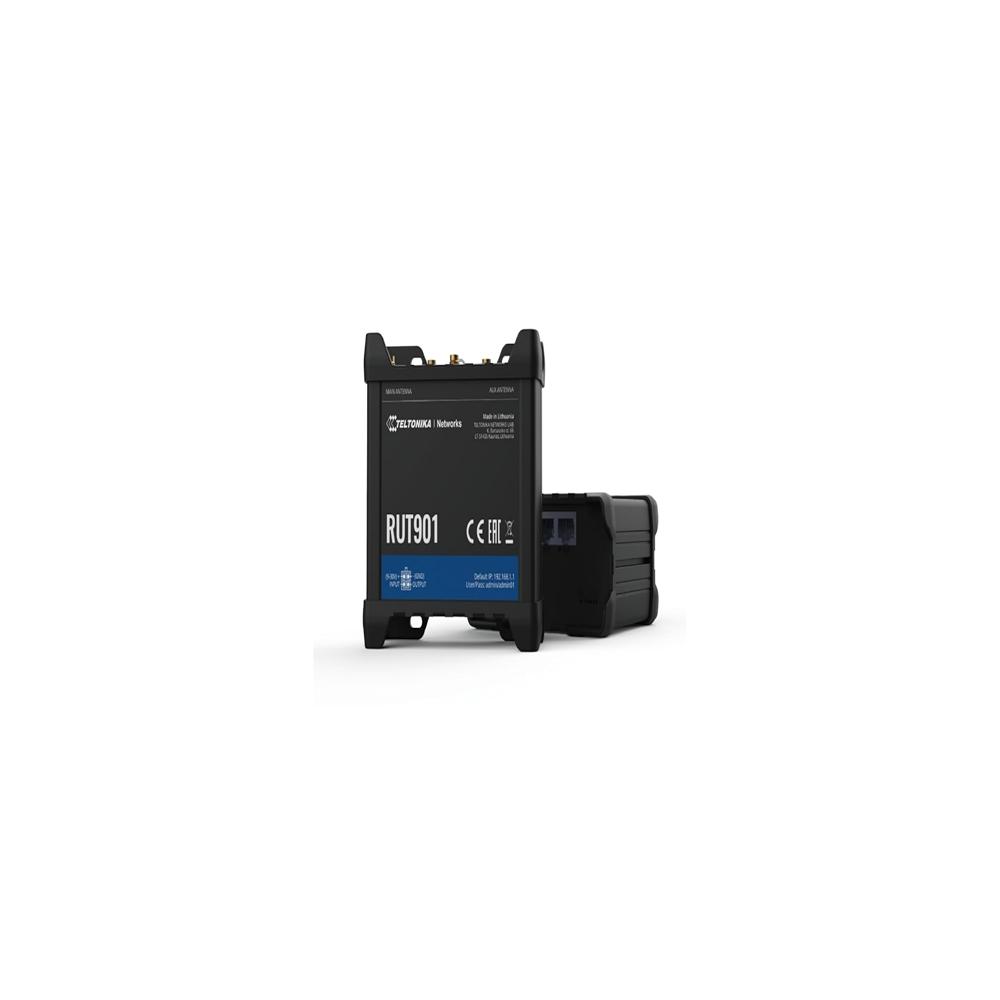

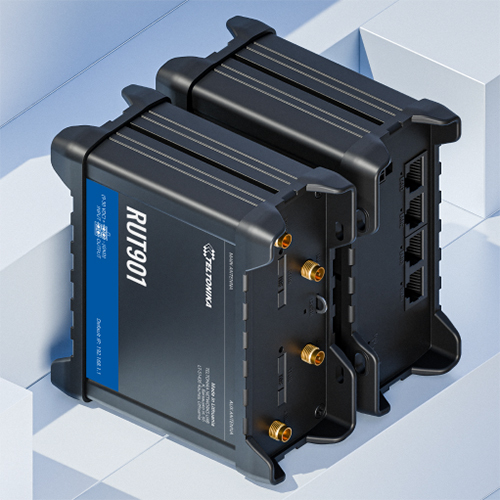

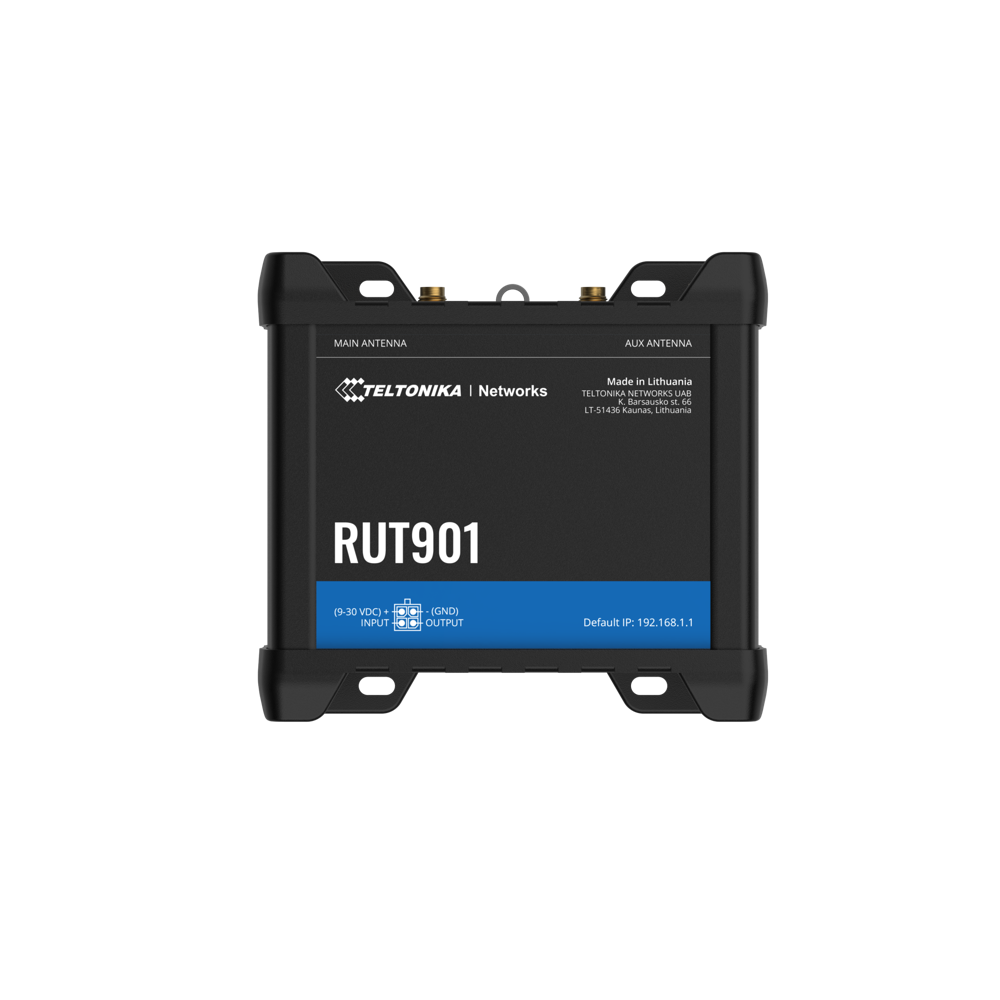

Teltonika RUT901 Industrial Dual-SIM 4G LTE Wi-Fi Router

About Teltonika RUT901 Industrial Dual-SIM 4G LTE Wi-Fi Router

Reliable 4G LTE Connectivity

The Teltonika RUT901 is designed to provide reliable internet access in industrial and commercial environments. It supports 4G LTE Cat 4, 3G, and 2G cellular networks, making it suitable for primary internet connectivity or as a backup connection for existing networks.

Key Features

• 4G LTE Cat 4: Cellular connectivity with theoretical speeds of up to 150 Mbps download and 50 Mbps upload.
• Dual SIM: Two SIM slots with automatic switching options to help maintain connectivity.
• Wi-Fi 4: 2.4 GHz wireless networking with Access Point and Station modes.
• Four Ethernet Ports: Four 10/100 Mbps RJ45 ports for wired network connections.
• WAN Failover: Supports automatic switching to an available backup connection.
• Remote Management: Compatible with Teltonika RMS for remote monitoring and management.
• RutOS: OpenWrt-based operating system with networking, security, and configuration features.
• Industrial Construction: Aluminium housing with an operating temperature range of -40C to +75C.
• Digital I/O: One digital input and one digital output for supported monitoring and control applications.
• Industrial Protocols: Supports protocols including MQTT, Modbus TCP, and DNP3.

Flexible Network Management

RUT901 provides networking features for deployments that require secure and manageable connectivity. Its dual-SIM capability and WAN failover options can help reduce interruptions when a primary connection becomes unavailable. The router can also be configured for a range of network applications using RutOS.

Applications

• Industrial automation and monitoring
• IoT connectivity and remote equipment access
• Transportation and infrastructure networks
• Business internet and backup connectivity
• Remote sites and branch offices
• Applications requiring cellular WAN and wired LAN connections

Technical Specifications

• Cellular connectivity: 4G LTE Cat 4, 3G, 2G
• Maximum LTE speed: Up to 150 Mbps download / 50 Mbps upload
• SIM: 2 Mini SIM (2FF)
• Wi-Fi: 802.11b/g/n, 2.4 GHz

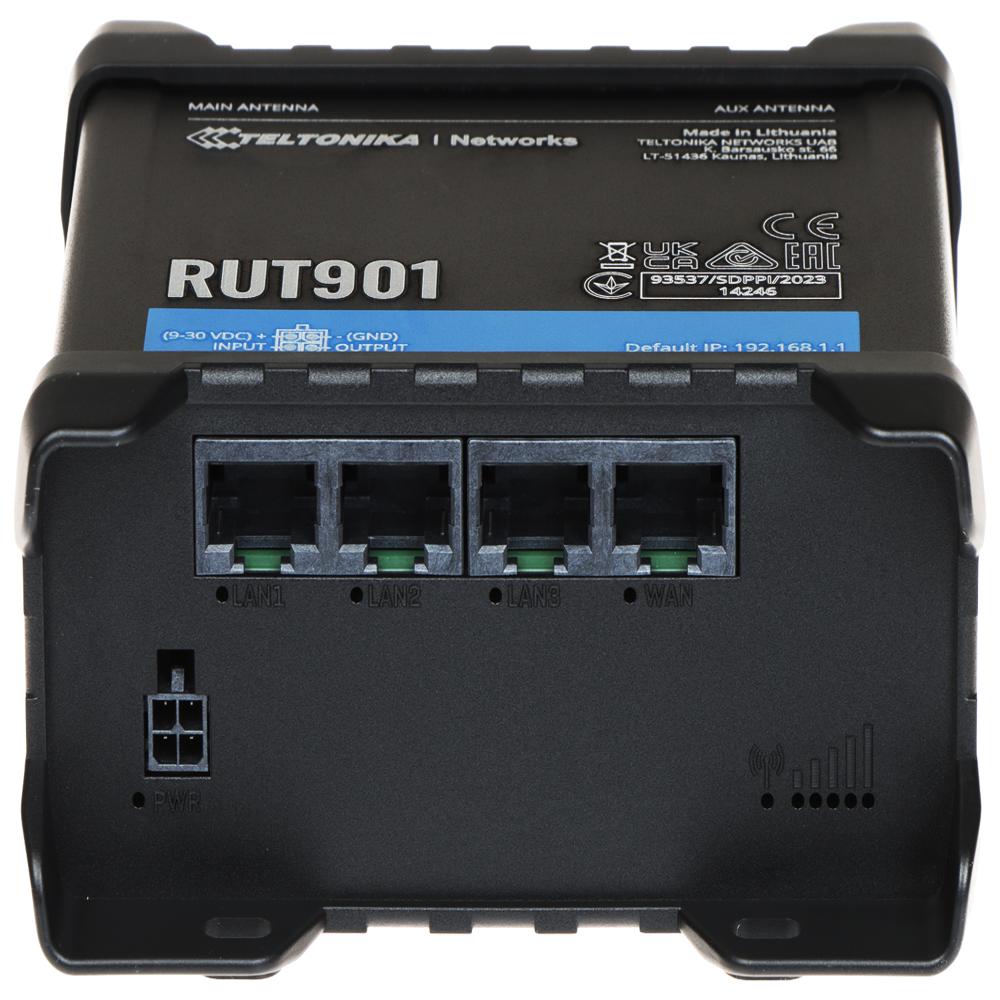

• Ethernet: 4 RJ45, 10/100 Mbps
• Digital I/O: 1 digital input, 1 digital output
• Power input: 930 VDC
• Passive PoE: Supported through LAN1; not IEEE 802.3af/at/bt compatible
• Operating temperature: -40C to +75C
• Ingress protection: IP30
• Dimensions: 110 50 100 mm
• Weight: Approximately 297 g
• Operating system: RutOS (OpenWrt-based)
