About Teltonika RUT906 Industrial 4G LTE Router

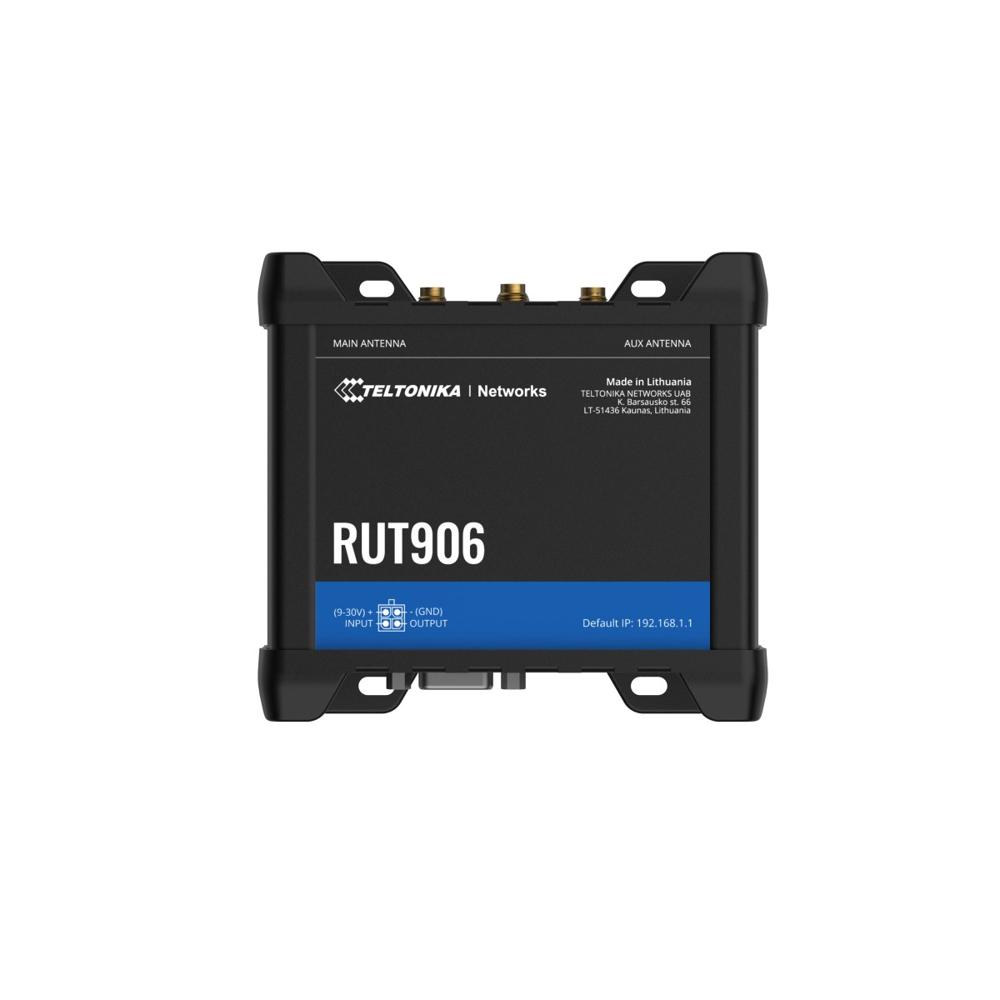

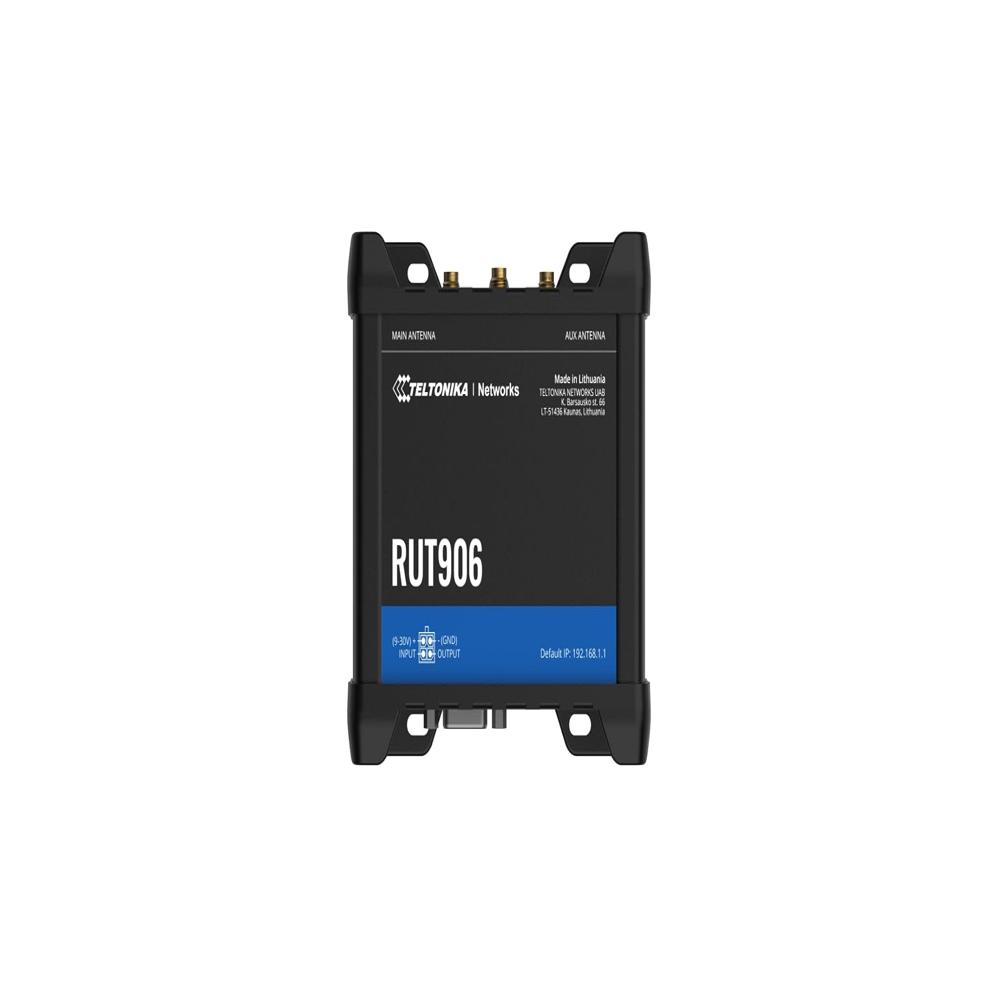

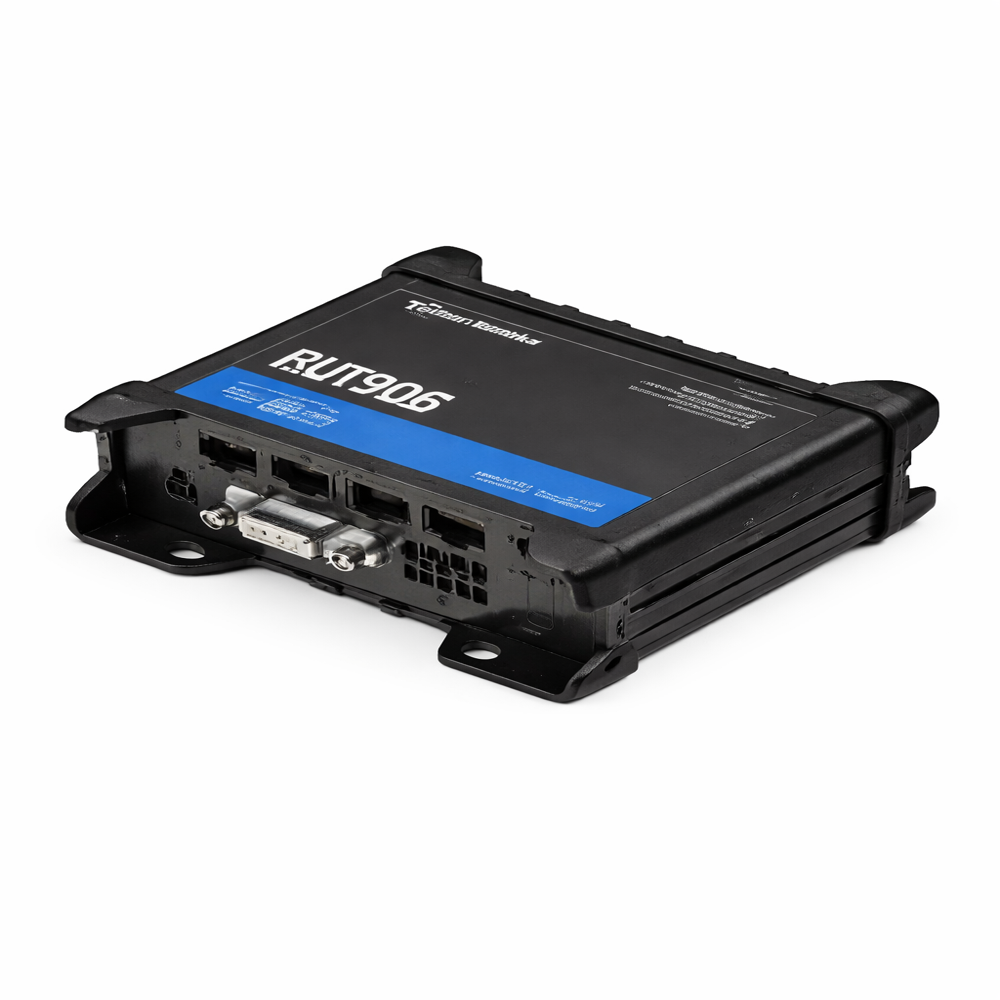

Teltonika RUT906 Industrial 4G LTE Router with RS232, RS485 & GNSS

Short Description

The Teltonika RUT906 is an industrial 4G LTE Cat 4 router designed for reliable connectivity in industrial IoT and automation environments. Featuring dual SIM, Wi-Fi, four Ethernet ports, RS232, RS485, GNSS, and configurable I/O interfaces, it provides flexible networking and device integration for a wide range of applications.

Long Description

Advanced Industrial Connectivity

The Teltonika RUT906 is a versatile cellular router designed for industrial and commercial applications that require dependable internet access and communication with connected equipment. It supports 4G LTE Cat 4, 3G, and 2G connectivity, making it suitable for primary cellular connections and backup networking.

Key Features

• 4G LTE Cat 4: Cellular connectivity with theoretical speeds of up to 150 Mbps download and 50 Mbps upload.
• Dual SIM: Two SIM slots with automatic failover and configurable connection-switching scenarios.
• Wi-Fi 4: 2.4 GHz wireless connectivity supporting Access Point and Station modes.
• Four Ethernet Ports: Four 10/100 Mbps RJ45 ports for wired network connections.
• RS232 & RS485: Serial interfaces for connecting industrial equipment and compatible devices.
• GNSS Support: Provides positioning, location services, and time synchronization capabilities.
• Digital & Analog I/O: Supports monitoring and control through configurable input/output interfaces.
• USB Interface: USB Type-A port for supported external devices.
• RutOS: OpenWrt-based operating system with advanced networking and security features.
• Remote Management: Supports Teltonika Remote Management System (RMS).
• Industrial Design: Aluminium housing with an operating temperature range of -40C to +75C.

Flexible Networking and Device Integration

With cellular connectivity, Ethernet, Wi-Fi, and serial communication interfaces, the RUT906 can connect network infrastructure with compatible industrial equipment. Its RS232 and RS485 interfaces support serial communication, while its I/O capabilities enable integration with supported monitoring and control systems.

Dual-SIM functionality, backup WAN, and automatic failover options help support network continuity in deployments where maintaining connectivity is important.

Applications

• Industrial automation and control
• IoT connectivity and remote monitoring
• Energy and utility infrastructure
• Transportation and smart-city systems
• Remote equipment communication
• Business networks requiring cellular backup
• Industrial systems using RS232 or RS485 devices

Technical Specifications

• Cellular connectivity: 4G LTE Cat 4, 3G, 2G
• Maximum LTE speed: Up to 150 Mbps download / 50 Mbps upload
• SIM: 2 Mini SIM (2FF); eSIM available with optional hardware
• Wi-Fi: 802.11b/g/n (Wi-Fi 4), 2.4 GHz
• Ethernet: 4 RJ45, 10/100 Mbps
• Serial interfaces: 1 RS232, 1 RS485
• GNSS: Supported
• USB: 1 USB Type-A
• I/O: Digital, analog, and relay-related interfaces; configuration depends on the connector and supported functions
• Power input: 930 VDC
• Passive PoE: Supported on LAN1; not compatible with IEEE 802.3af/at/bt
• Operating temperature: -40C to +75C
• Ingress protection: IP30
• Dimensions: 109.5 50 100 mm
• Weight: Approximately 295 g
• Operating system: RutOS
