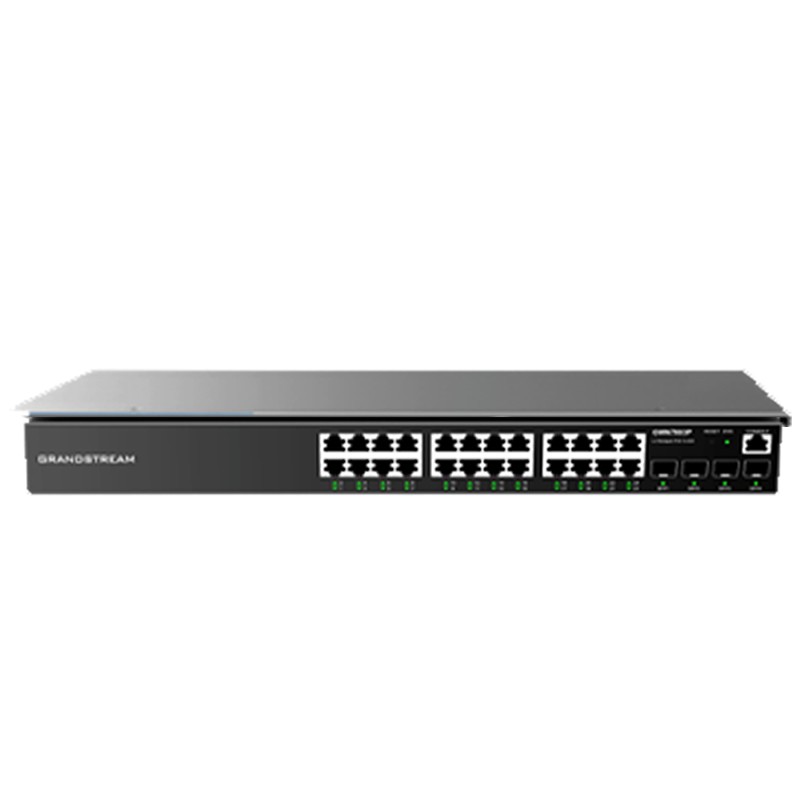

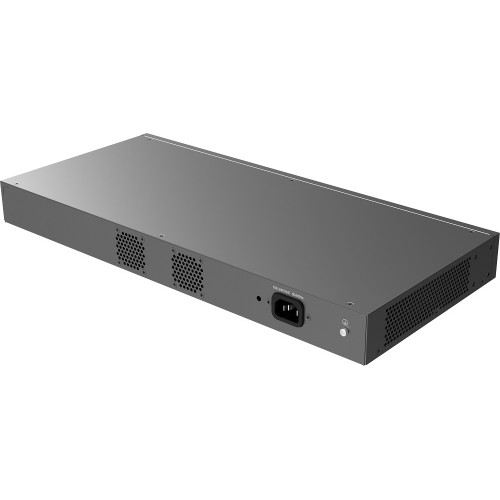

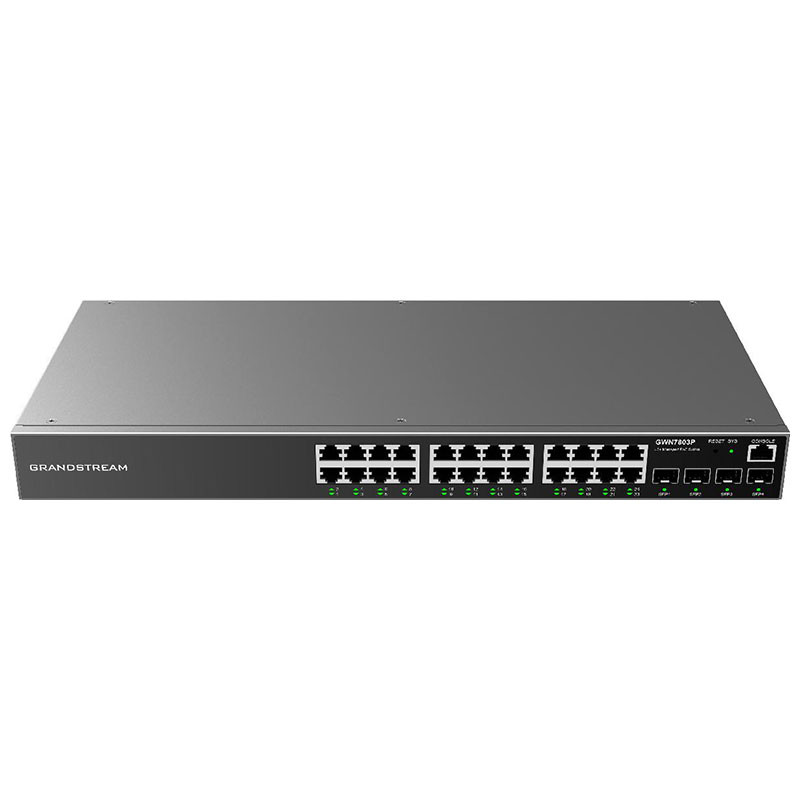

Grandstream GWN7803P 24-Port Gigabit Ethernet Layer 2+ Managed PoE Switch

Send Inquiry

Request To Call Back

Grandstream GWN7803P 24-Port Gigabit Ethernet Layer 2+ Managed PoE Switch

Name: Grandstream GWN7803P 24-Port Gigabit Ethernet Layer 2+ Managed PoE Switch
Brand: AIRPATH WIRELESSNET SOLUTIONS
Price: 22390.00 INR
Availability: InStock

Price 22390.00 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Grandstream GWN7803P 24-Port Gigabit Ethernet Layer 2+ Managed PoE Switch Specification

Usage & Applications
SMB/Enterprise Office Networking, IP Surveillance, VoIP, Wireless AP deployments

Features
PoE+ (IEEE 802.3af/at), Layer 2+ Switching, VLAN, QoS, Security, IGMP Snooping, DHCP Snooping, Management via Web/CLI

Network Device
Switch

Dimension (L*W*H)
440 mm x 257.8 mm x 44 mm

Interface Type
RJ45, SFP

Port
24

Power Consumption
Max 250W

Weight
2.8 kg

Device Type
Rackmount Switch

Power Supply
100-240V AC, 50/60Hz, Internal Power Supply

IP Routing
Layer 2+ Static Routing

Remote Control
Yes

Operating Temperature
0C to 50C

Frequency
50/60 Hz (Power frequency)

Connectivity Type
Wired Ethernet

Number Of Ports/Pins
24 RJ45 Ports, 4 SFP Uplinks

Cable Length
Up to 100m (for Ethernet cable)

VLANs Supported
4094 VLANs

MAC Address Table
8K MAC Addresses

Fan
Smart Fan with Temperature Control

Jumbo Frame Support
9 KB

Relative Humidity
10% to 90% (Non-condensing)

Forwarding Rate
41.66 Mpps

Management
Local Web GUI, Command Line Interface, SNMP v1/v2c/v3, Grandstream Device Management System (GDMS)

Storage Temperature
-40C to 70C

Switching Capacity
56 Gbps

LED Indicators
Per Port: Link/Activity; PoE Status; System Status

PoE Budget
240W Total Power Budget

Grandstream GWN7803P 24-Port Gigabit Ethernet Layer 2+ Managed PoE Switch Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Days

Grandstream GWN7803P 24-Port Gigabit Ethernet Layer 2+ Managed PoE Switch About

Layer 2+ Managed Network Switches
The GWN7800 series are Layer 2+ managed network switches that allow small-to-medium enterprises to build scalable, secure, high performance, and smart business networks that are fully manageable

8/16/24 Gigabit Ethernet ports and 2/4 Gigabit SFP ports
Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models
Supports deployment in IPv6 and IPv4 networks
Provides quaternary binding of IP, MAC, VLAN & port; ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
Embedded controller to manage switch; GDMS Networking and GWN Manager, Grandstreams cloud and on-premise Wi-Fi management platform, and GWN Series Router
Built-in QoS allows for prioritization of network traffic

Advanced Power over Ethernet (PoE+) Capability

Delivering up to 240W total power, the GWN7803P efficiently supports PoE+ (IEEE 802.3af/at) standards across its 24 RJ45 ports. This ensures seamless operation of PoE-enabled devices, such as IP cameras, wireless access points, and VoIP phones, without the need for separate power sources.

Comprehensive Management and Monitoring

The GWN7803P offers multiple management options, including a user-friendly web GUI, powerful command-line interface (CLI), and compatibility with Grandstream's GDMS for remote monitoring and device configuration. SNMP v1/v2c/v3 support streamlines network monitoring and maintenance.

Performance and Reliability for Modern Networks

With a switching capacity of 56 Gbps, 41.66 Mpps forwarding rate, and 8K MAC address table, the GWN7803P accommodates dense, high-traffic environments. Its smart fan with temperature control, wide operating temperatures, and sturdy rackmount design guarantee durability and dependability.

FAQ's of Grandstream GWN7803P 24-Port Gigabit Ethernet Layer 2+ Managed PoE Switch:

Q: How does the Grandstream GWN7803P help simplify network management?

A: The GWN7803P allows administrators to manage networks through an intuitive local web GUI, command-line interface, or remotely using Grandstream Device Management System (GDMS). This flexible management ensures efficient device monitoring, firmware upgrades, and configuration adjustments, streamlining network operations.

Q: What are the benefits of PoE+ support on the GWN7803P switch?

A: With a 240W PoE power budget and support for PoE+ (IEEE 802.3af/at), the switch powers a wide range of network devices such as IP cameras and VoIP phones. This reduces installation complexity and cost by removing the need for additional power supplies or outlets.

Q: When is the GWN7803P an ideal choice for network deployment?

A: The GWN7803P is especially well-suited for SMBs, enterprises, and organizations deploying IP surveillance, VoIP, or wireless access points. Its ample PoE budget, high switching capacity, advanced security, and robust VLAN features provide the scalability and reliability critical for growing networks.

Q: Where can the Grandstream GWN7803P be installed?

A: Designed as a rackmount switch, the GWN7803P fits standard server racks in data centers, telecom closets, or office network rooms. Its sturdy design accommodates temperatures from 0C to 50C and up to 90% relative non-condensing humidity, making it ideal for various installations.

Q: What process is involved in setting up the GWN7803P switch?

A: Setting up involves mounting the switch, connecting Ethernet and SFP uplink cables, powering on the device, and accessing the web GUI via a browser. Through the interface, users can configure VLANs, security, PoE schedules, and monitor performance to tailor network operations to organizational needs.

Q: How does the smart fan with temperature control function benefit the switch?

A: The integrated smart fan automatically adjusts its speed based on the switch's temperature, ensuring optimal cooling and extending hardware life. This helps maintain stable performance even in demanding environments, while minimizing noise and power consumption.

Q: What usage scenarios are supported by the GWN7803P's feature set?

A: The switch is versatile, supporting usage in SMB/enterprise networking, IP surveillance, VoIP, and high-density wireless access point deployments. Its robust capabilities-including VLAN, QoS, static routing, and PoE-make it adaptable for varied network topologies and modern business demands.
