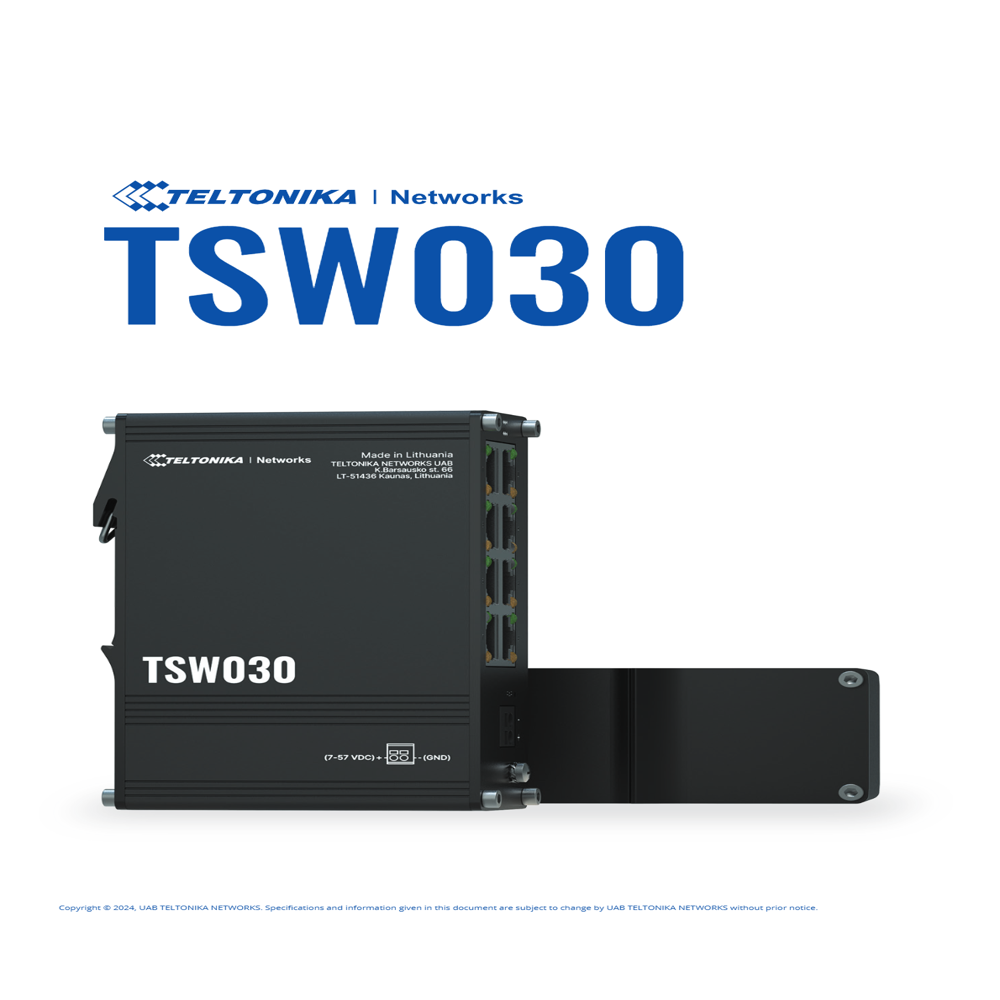

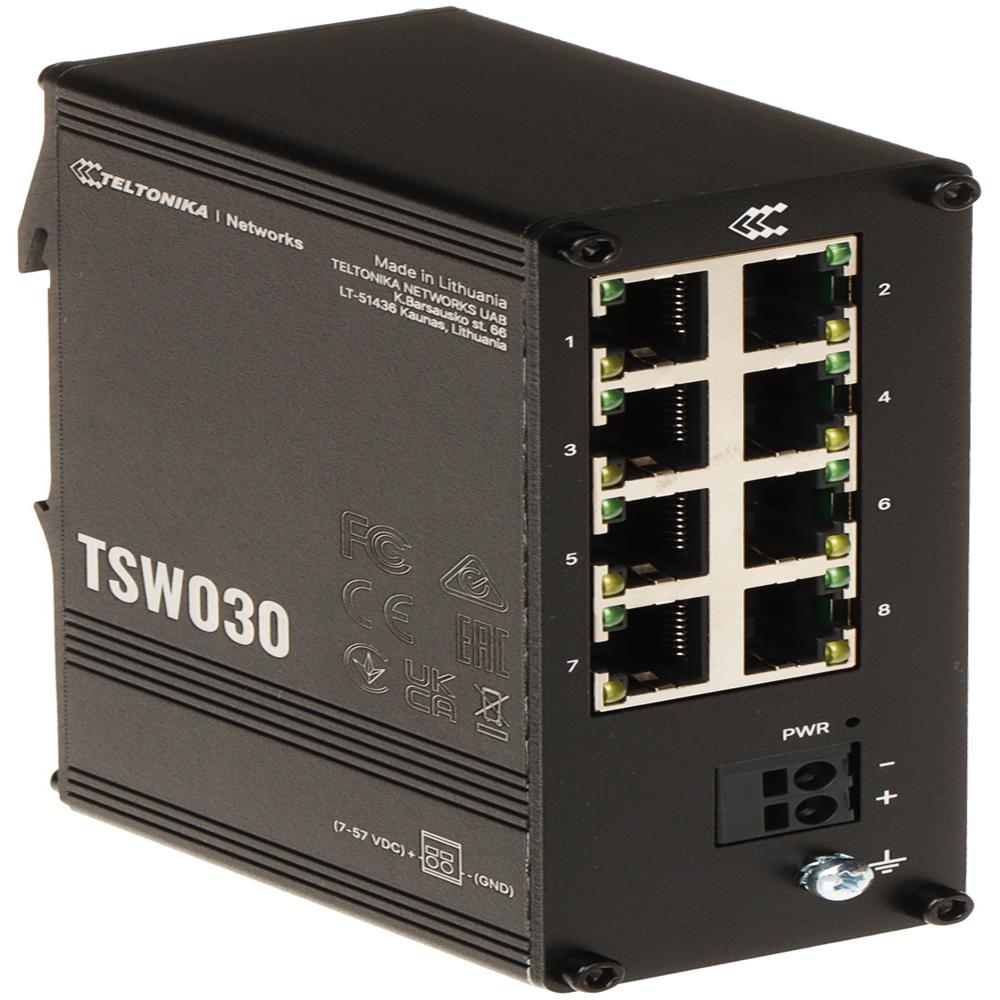

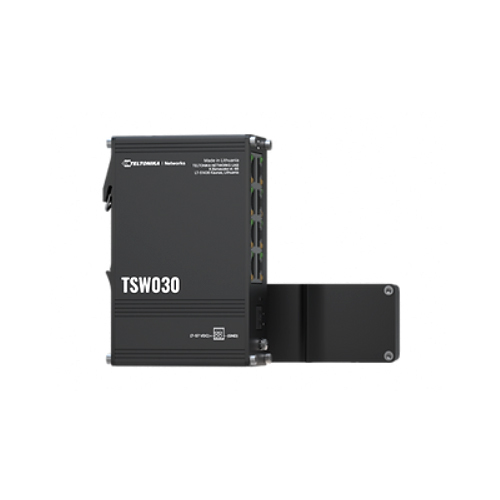

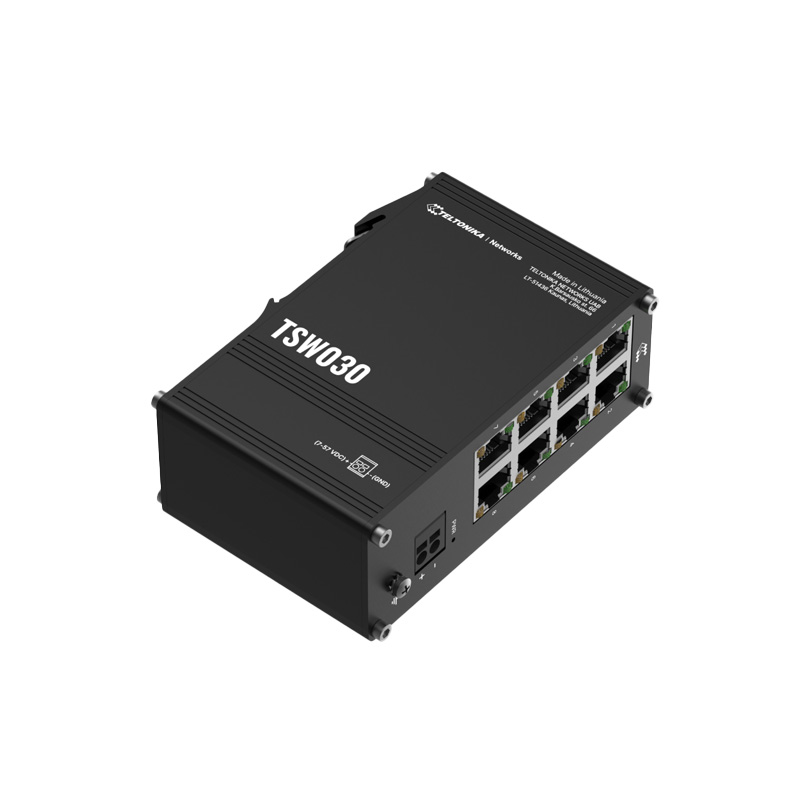

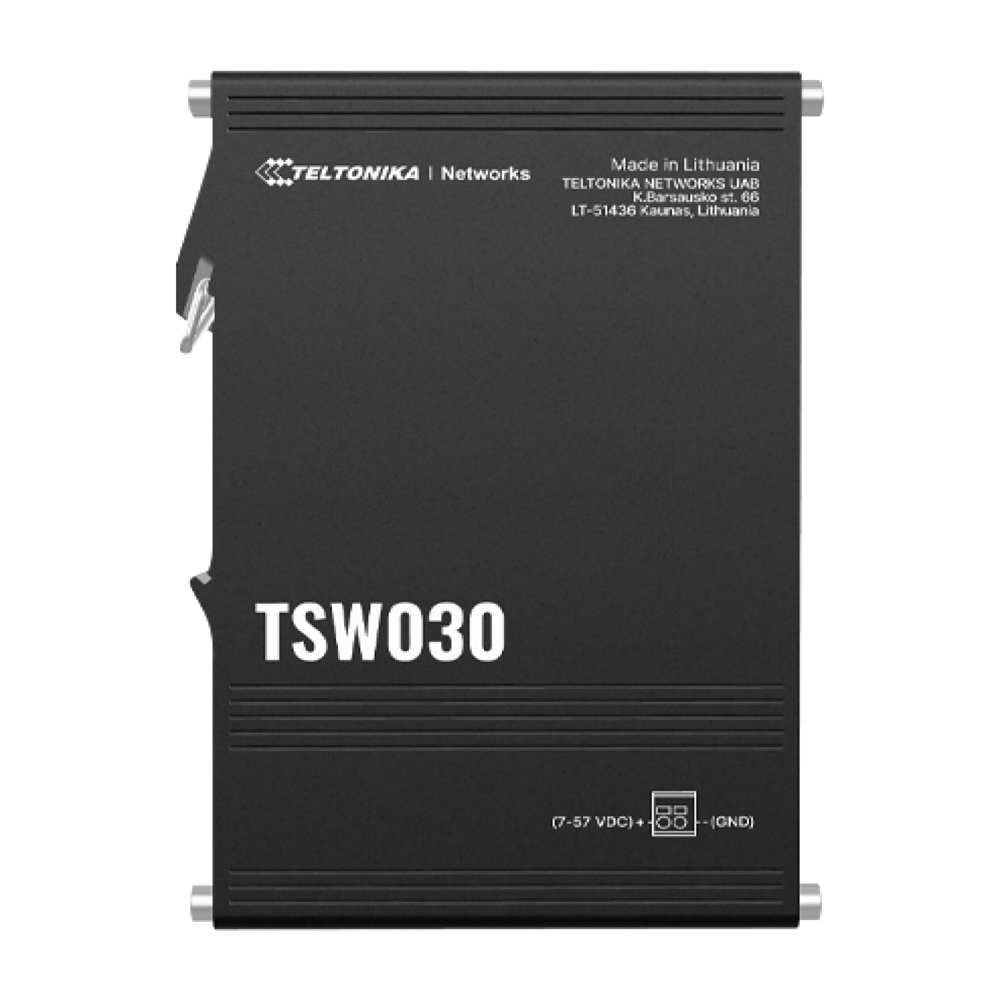

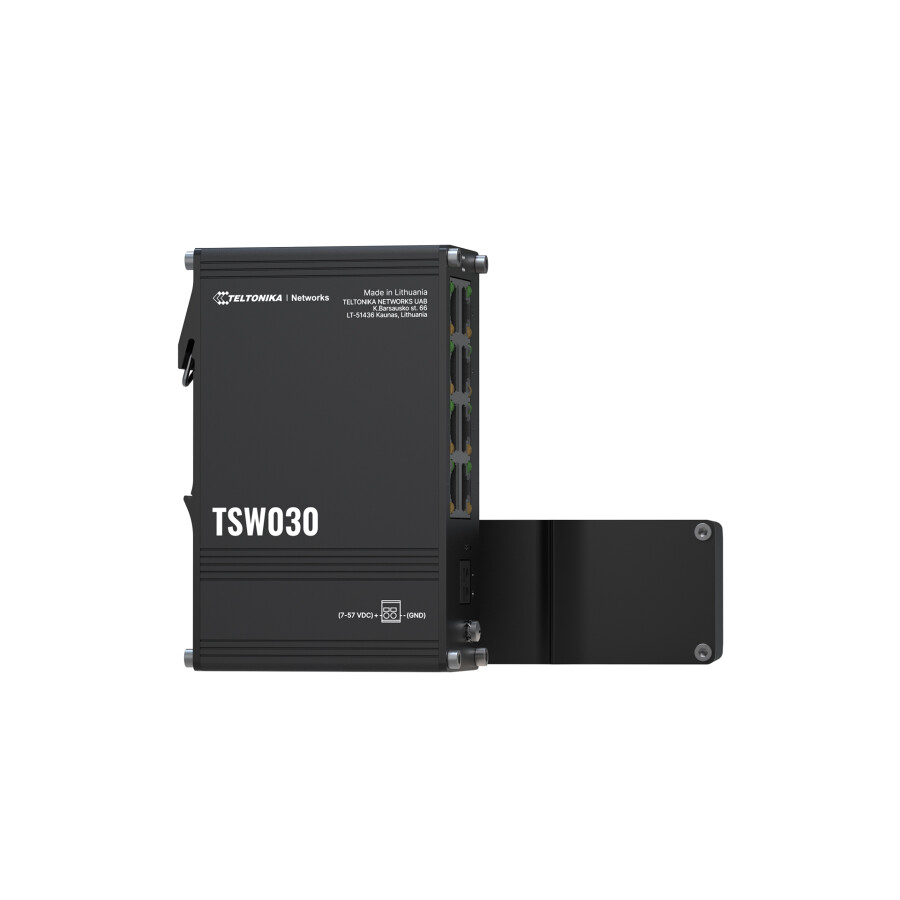

Teltonika TSW030 Compact 8-Port Industrial Ethernet Switch

Price 6990.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Kilograms

Teltonika TSW030 Compact 8-Port Industrial Ethernet Switch Specification

Network Device
Switch

Teltonika TSW030 Compact 8-Port Industrial Ethernet Switch Trade Information

Minimum Order Quantity
1 Kilograms

Delivery Time
1 Days

About Teltonika TSW030 Compact 8-Port Industrial Ethernet Switch

Reliable Industrial Ethernet Connectivity

The Teltonika TSW030 provides a simple and efficient solution for expanding wired Ethernet connectivity in industrial installations. With **eight Fast Ethernet ports**, it can connect multiple network devices without requiring complex configuration.

As an unmanaged switch, the TSW030 is designed for straightforward plug-and-play deployment. Its integrated DIN rail bracket makes installation convenient inside control cabinets, industrial panels, and other equipment enclosures.

Key Features

* 8 Ethernet Ports: Eight 10/100 Mbps RJ45 ports for connecting network devices.

* Unmanaged Operation: Plug-and-play connectivity without switch configuration.

* Auto MDI/MDIX: Automatically detects cable connection requirements.

* 20 Gbps Non-Blocking Bandwidth: Provides high internal switching capacity.

* 2K MAC Address Table: Supports up to 2,000 MAC address entries.

* Jumbo Frames: Supports frames up to 9,216 bytes.

* Integrated DIN Rail Mount: Convenient installation in industrial cabinets and control panels.

* Wide DC Input: Supports 757 VDC input with protection features.

* Low Power Consumption:Approximately 0.5 W idle and up to 1.5 W maximum.

* Industrial Aluminium Housing: Anodized aluminium casing designed for industrial deployment.

* Wide Operating Temperature: Suitable for environments from -40C to +75C.

* Profinet Option: Profinet Class A conformance is available with a specific optional order code.

Easy Plug-and-Play Networking

The TSW030 is suitable for applications where reliable Ethernet expansion is required without the need for managed-switch configuration. Connect up to eight Ethernet devices, supply power, and the switch provides automatic Ethernet connectivity.

Its compact form factor and integrated DIN rail mounting help save installation space while maintaining a rugged industrial design.

Industrial Applications

The TSW030 can be deployed in:

* Industrial automation and control

* IoT infrastructure

* Factory and building automation

* Transportation systems

* Smart-city networks

* Energy and utility installations

* CCTV and security networks

* Enterprise Ethernet expansion

* Industrial control cabinets
