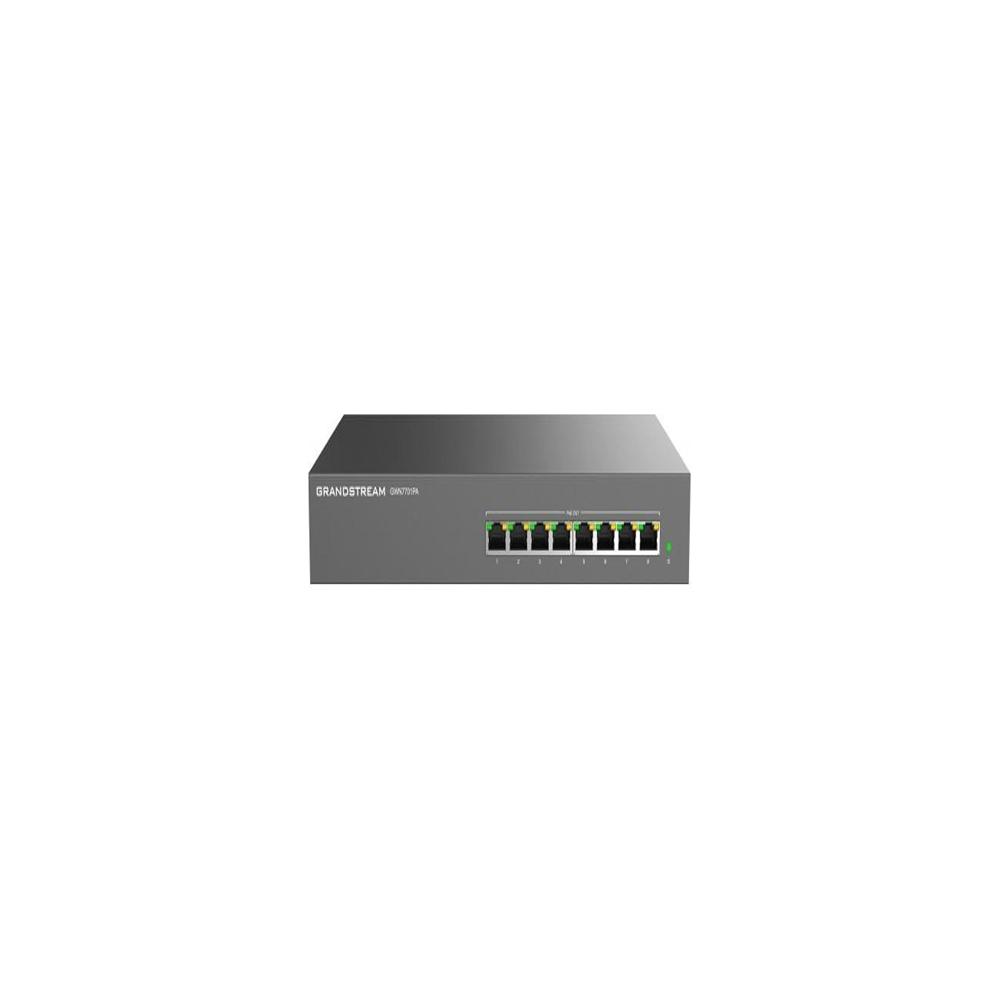

Grandstream GWN7701PA 8-Port Gigabit Ethernet Unmanaged PoE Switch

Send Inquiry

Request To Call Back

Grandstream GWN7701PA 8-Port Gigabit Ethernet Unmanaged PoE Switch

Name: Grandstream GWN7701PA 8-Port Gigabit Ethernet Unmanaged PoE Switch
Brand: AIRPATH WIRELESSNET SOLUTIONS
Price: 6050.0 INR
Availability: InStock

Price 6050.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Grandstream GWN7701PA 8-Port Gigabit Ethernet Unmanaged PoE Switch Specification

Remote Control
Yes

Port
8

Power Supply
External power adapter (Included)

Frequency
50/60Hz (Power input)

Network Device
Switch

Usage & Applications
Small to medium business networks, office connectivity, IP camera and IP phone deployments

Interface Type
RJ45

Dimension (L*W*H)
190 mm x 100 mm x 28 mm

Features
Plug-and-play installation, IEEE 802.3af/at compliant, fanless design, desktop form factor

Operating Temperature
0C to 40C (32F to 104F)

Power Consumption
Maximum 60W

Device Type
Unmanaged PoE Switch

IP Routing
No (Unmanaged Switch)

Weight
440 g

Connectivity Type
Wired Ethernet

Number Of Ports/Pins
8 Ports

Cable Length
Up to 100 meters (Cat5e/Cat6 Ethernet) per port

Switching Capacity
16 Gbps

LED Indicators
Power, Link/Activity, PoE Status

MAC Address Table Size
4K

Total PoE Power Budget
60W

PoE Standards Supported
IEEE 802.3af/at

Enclosure Type
Metal

VLAN Support
No (Unmanaged)

Power Input
48V DC, 1.25A

Mounting Option
Desktop

Jumbo Frame Support
Yes, up to 9KB

Grandstream GWN7701PA 8-Port Gigabit Ethernet Unmanaged PoE Switch Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
1 Days

Grandstream GWN7701PA 8-Port Gigabit Ethernet Unmanaged PoE Switch About

5/8/16/24/48 Gigabit RJ45 ports, 4 port PoE+ output (GWN7700P & GWN7701P), 8 port PoE+ output (GWN7701PA & GWN7702P)
Green technology reduces power consumption
LED Indicators; Per port: Link/Activity/Speed, Per Port: PoE output (GWN7701PA/GWN7702P), Per device: Power
Auto MDI/MDIX crossover for all ports
802.3 af/at compliant Up to 30W on each port, (GWN7700P/GWN7701P/ GWN7701PA/GWN7702P only)
Broadcast/Multicast/Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
Supports long cable connection
QoS - Supports Default Strict Priority when present

Effortless Power and Data Distribution

With eight gigabit ports and full PoE support (IEEE 802.3af/at), the GWN7701PA streamlines both power and data delivery for multiple network devices. This makes it an excellent solution for deploying IP cameras, phones, or access points in offices or business environments, ensuring reliable network performance without additional cabling or power outlets.

Reliable Performance and Broad Compatibility

Boasting a sturdy metal construction and a fanless, desktop design, the GWN7701PA offers quiet and dependable operation in office settings. Its 16 Gbps switching capacity and support for jumbo frames up to 9KB help maintain high throughput and compatibility across a wide range of Ethernet devices.

Simple Setup for Growing Networks

The unmanaged, plug-and-play design of the GWN7701PA means you can expand your network without any technical hassle. With external power supply included and clear LED indicators for power, link, and status, installation and monitoring are quick and intuitive-perfect for businesses looking for immediate connectivity.

FAQ's of Grandstream GWN7701PA 8-Port Gigabit Ethernet Unmanaged PoE Switch:

Q: How does the Grandstream GWN7701PA provide power to connected devices?

A: The GWN7701PA delivers power over Ethernet (PoE) to compatible devices using IEEE 802.3af/at standards, supplying up to 60W total across all eight ports. This allows you to power IP cameras, phones, and access points directly through Ethernet cables, eliminating the need for separate power supplies.

Q: What types of businesses can benefit from this unmanaged PoE switch?

A: This switch is ideal for small to medium-sized businesses that require straightforward, reliable connectivity for devices like IP cameras, VoIP phones, and wireless access points. Its plug-and-play setup is particularly suited for offices in need of cost-effective network expansion without IT complexity.

Q: Does the GWN7701PA support VLAN configuration or advanced management features?

A: No, the GWN7701PA is an unmanaged switch. It does not support VLAN configuration or advanced network management functionalities, making it a simple and efficient solution for networks that don't require segmentation or complex setups.

Q: What is the maximum cable length supported by each port, and which cables are recommended?

A: Each RJ45 port on the GWN7701PA supports Ethernet cables (Cat5e or Cat6) up to 100 meters in length, providing flexibility in device placement throughout your office or workspace.

Q: Can this switch handle large data transfers and high network activity?

A: Yes, the GWN7701PA features a 16 Gbps switching capacity and supports jumbo frames up to 9KB, ensuring smooth performance even during intensive data transfers or heavy network usage.

Q: Where should the GWN7701PA switch be installed for optimal performance?

A: This switch is designed for desktop installation in well-ventilated indoor environments. Its compact metal enclosure ensures durability, while the fanless design keeps operation silent-making it suitable for office desktops or network closets.

Q: What indicators are available to monitor the switch's activity and status?

A: LED indicators on the GWN7701PA display power, link/activity, and PoE status for each port, giving users instant visual feedback on device connections and network activity.
