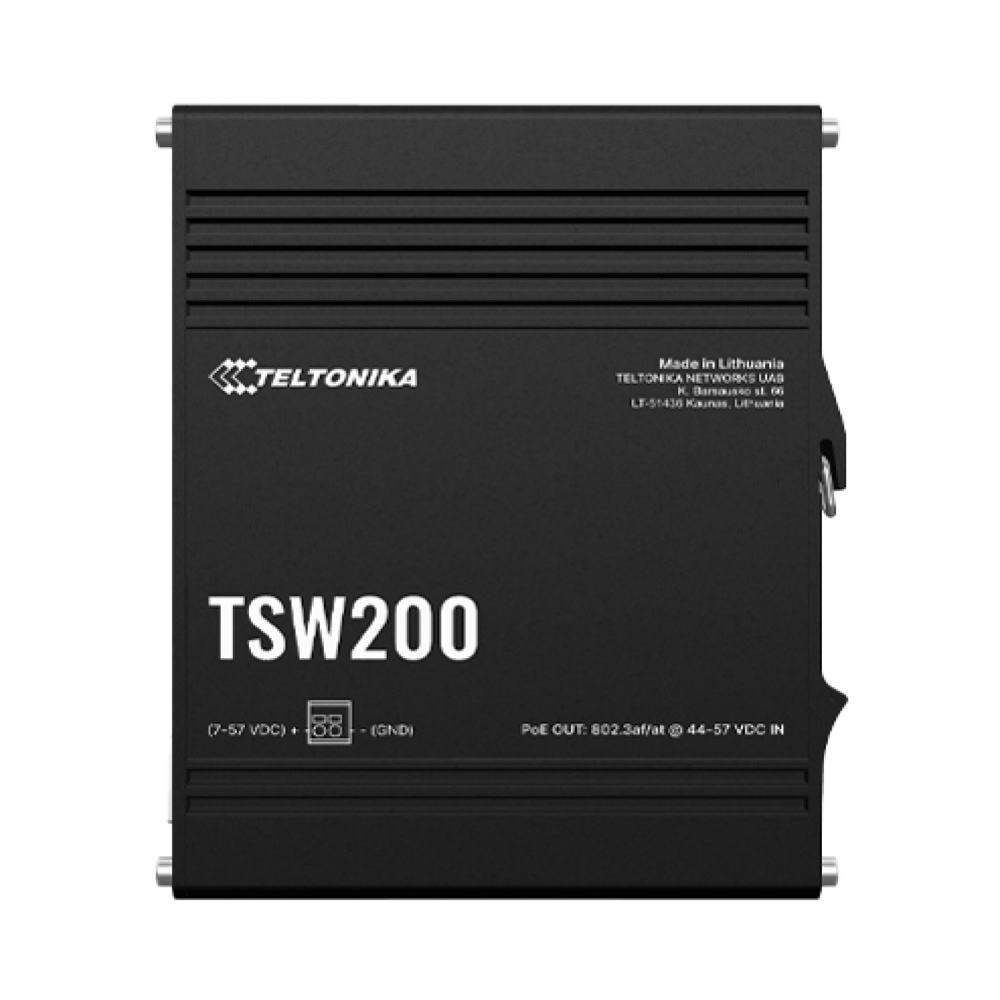

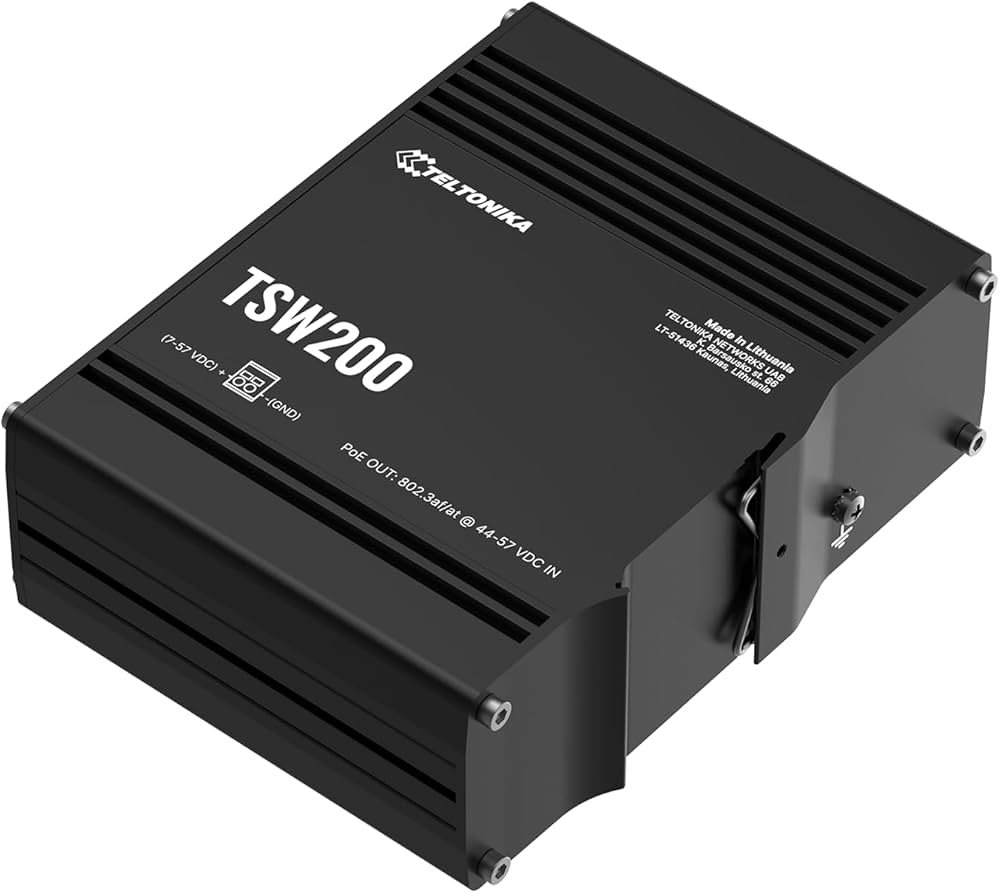

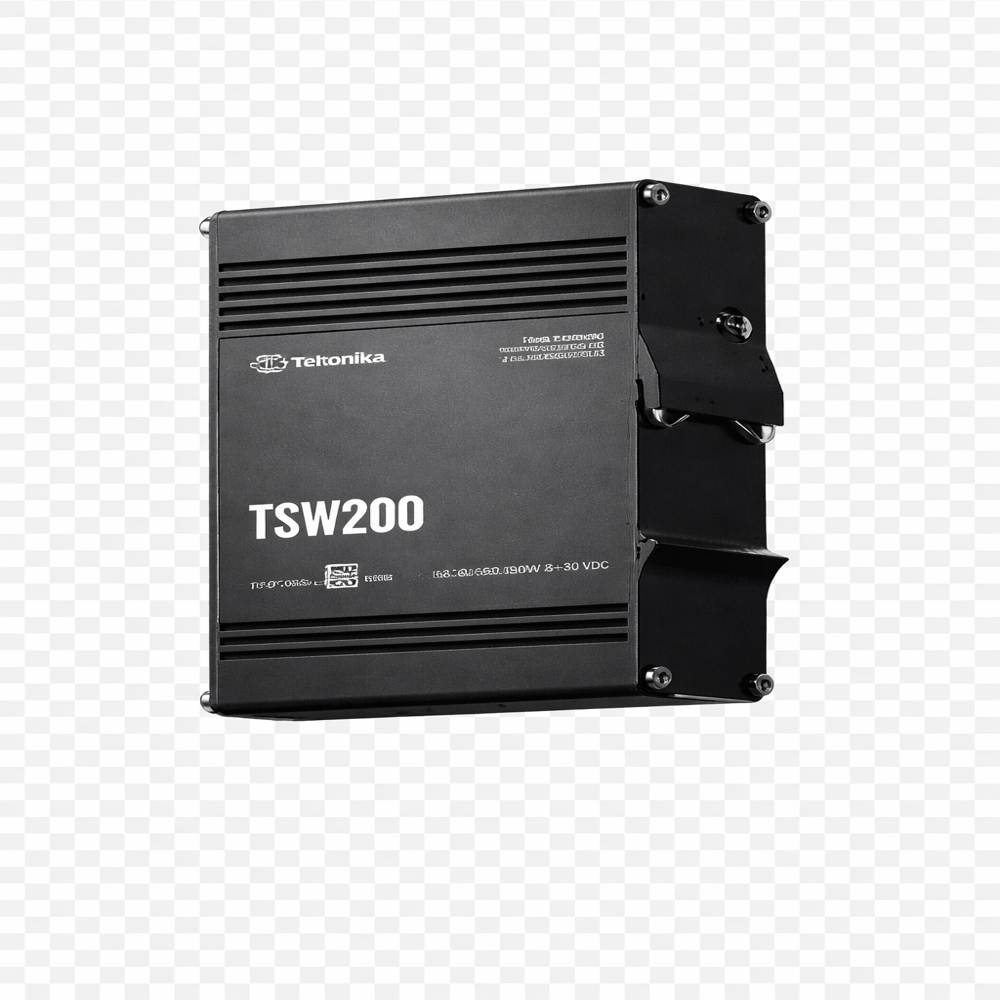

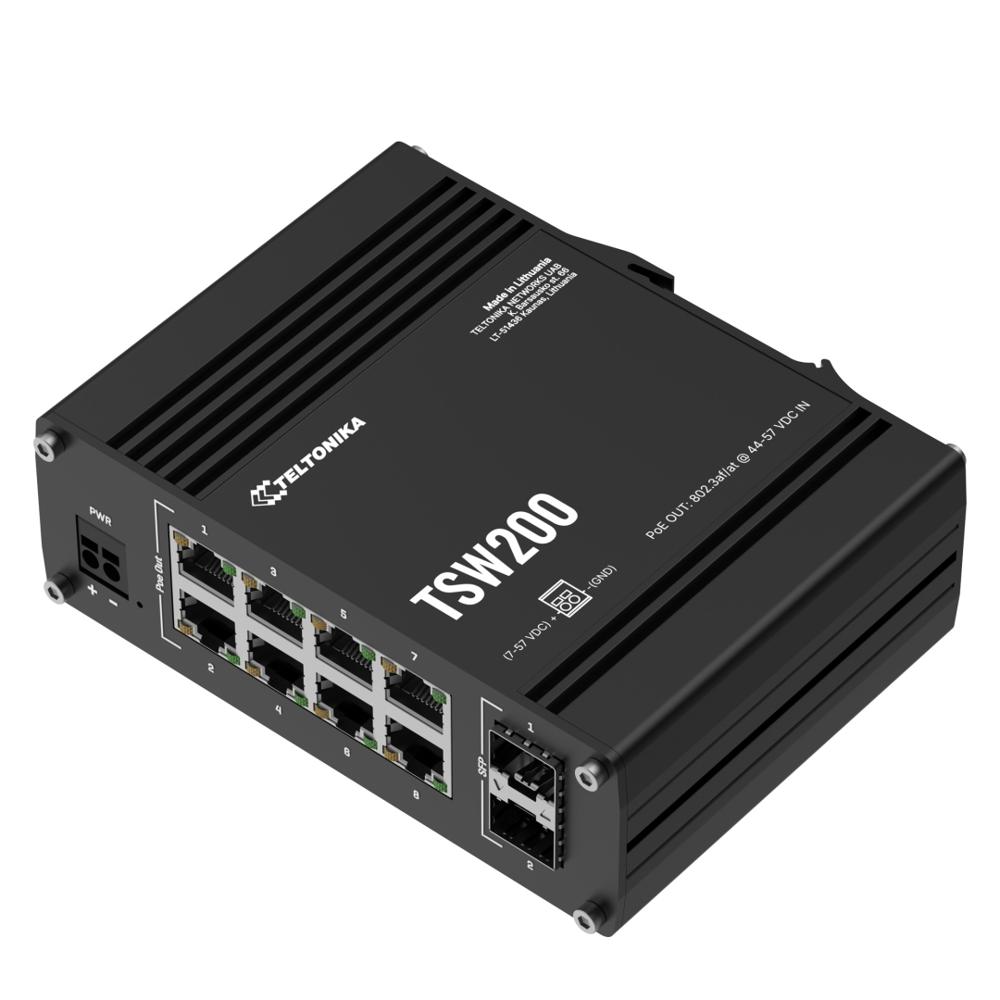

Teltonika TSW200 Industrial 8 Port Gigabit PoE+ Ethernet Switch

About Teltonika TSW200 Industrial 8 Port Gigabit PoE+ Ethernet Switch

High-Performance Industrial Networking

The Teltonika TSW200 combines high-speed Gigabit Ethernet, PoE+ power delivery, and fibre connectivity in a rugged industrial switch. Its eight Gigabit Ethernet ports provide network connectivity and PoE+ power to compatible devices, while two SFP ports allow fibre-optic connections for longer-distance network links.

The switch operates as an unmanaged plug-and-play device, making it simple to deploy where advanced switch configuration is not required.

Key Features

• 8 Gigabit Ethernet Ports: Supports 10/100/1000 Mbps connectivity.
• 8 PoE+ Ports: All eight Ethernet ports support IEEE 802.3af and 802.3at PoE standards.
• Up to 30 W per Port: Provides up to 30 W PoE output per port at the PSE.
• 240 W Total PoE Budget: Supports a total PoE power budget of up to 240 W.
• 2 SFP Ports: Enables fibre-optic connectivity for longer-distance network links.
• 20 Gbps Switching Bandwidth: Non-blocking bandwidth for efficient network traffic handling.
• 2K MAC Address Table: Supports up to 2,000 MAC address entries.
• Jumbo Frames: Supports frames up to 9,216 bytes.
• Auto MDI/MDIX: Automatically detects Ethernet cable connection requirements.
• Wide DC Input: Supports the specified industrial DC power range.
• Industrial Aluminium Housing: Rugged housing designed for demanding environments.
• Flexible Mounting: Supports DIN rail, wall mounting with an additional kit, and flat-surface placement.
• Industrial Temperature Range: Designed for operation from -40C to +75C.

Fibre & PoE+ Connectivity

The combination of 8 PoE+ Gigabit ports and 2 SFP ports makes the TSW200 suitable for network installations where both powered Ethernet devices and long-distance fibre links are required.

It can provide power and data connectivity to compatible IP cameras, wireless access points, routers, industrial equipment, and other PoE-enabled devices while using SFP connections to extend the network over fibre.

Industrial Applications

The TSW200 can be used for:

• IP surveillance and CCTV networks
• Wireless access point installations
• Industrial automation
• IoT infrastructure
• Smart-city networks
• Transportation systems
• Building automation
• Energy and utility networks
• Fibre-connected Ethernet infrastructure
• Industrial control cabinets
• Remote monitoring systems

Technical Specifications

• Switch type: Unmanaged industrial PoE+ switch
• Ethernet: 8 RJ45
• Ethernet speed: 10/100/1000 Mbps
• PoE ports: 8
• PoE standards: IEEE 802.3af / 802.3at
• Maximum PoE output: Up to 30 W per port
• Total PoE budget: Up to 240 W at PSE
• SFP: 2 SFP ports
• Non-blocking bandwidth: 20 Gbps
• Packet buffer: 128 KB
• MAC address table: 2K entries
• Jumbo frame: Up to 9,216 bytes
• Power connector: 2-pin industrial DC socket
• Input voltage: Current specification 957 VDC; PoE requires 4457 VDC
• Maximum power consumption: 5.5 W without PoE load
• PoE maximum consumption: Approximately 245.5 W
• Housing: Full aluminium
• Mounting: DIN rail / wall with additional kit / flat surface
• Operating temperature: -40C to +75C
• Operating humidity: 1090% non-condensing
• Ingress protection: IP30
• Dimensions: 132 44.2 95.1 mm
• Weight: Approximately 515 g
